Write your own actions

Actions control how your app responds to user input such as clicking a button or a point on a graph. Vizro provides built-in actions and also enables you to write your own custom actions. In this tutorial you will learn how to write your own custom actions.

Note

This tutorial assumes a basic knowledge of Vizro. If you haven't already done so, you should get started with Vizro in the quickstart tutorial or work through a more in-depth tutorial.

Vizro's actions are built on top of Dash callbacks, but you do not need to know anything about Dash callbacks to complete the tutorial. We also have an explanation of how Vizro actions work and their similarities and differences compared to Dash callbacks.

This tutorial should take about an hour to finish. You will gradually build a single-page app of a simple form that uses custom actions to show the current time, date and weather in Washington, D.C. or Berlin. Here's the final app in action:

CustAction8

A simple action

Let's start by making a very simple single-page app that tells us the current time when the user clicks on a button. We begin by configuring the layout: a button and a card with text in a flex layout.

App layout

import vizro.models as vm
from vizro import Vizro


page = vm.Page(
    title="My first action",
    layout=vm.Flex(),
    components=[
        vm.Button(),
        vm.Card(text="Click the button"),
    ],
)

dashboard = vm.Dashboard(pages=[page])
Vizro().build(dashboard).run()

Run and edit this code in Py.Cafe

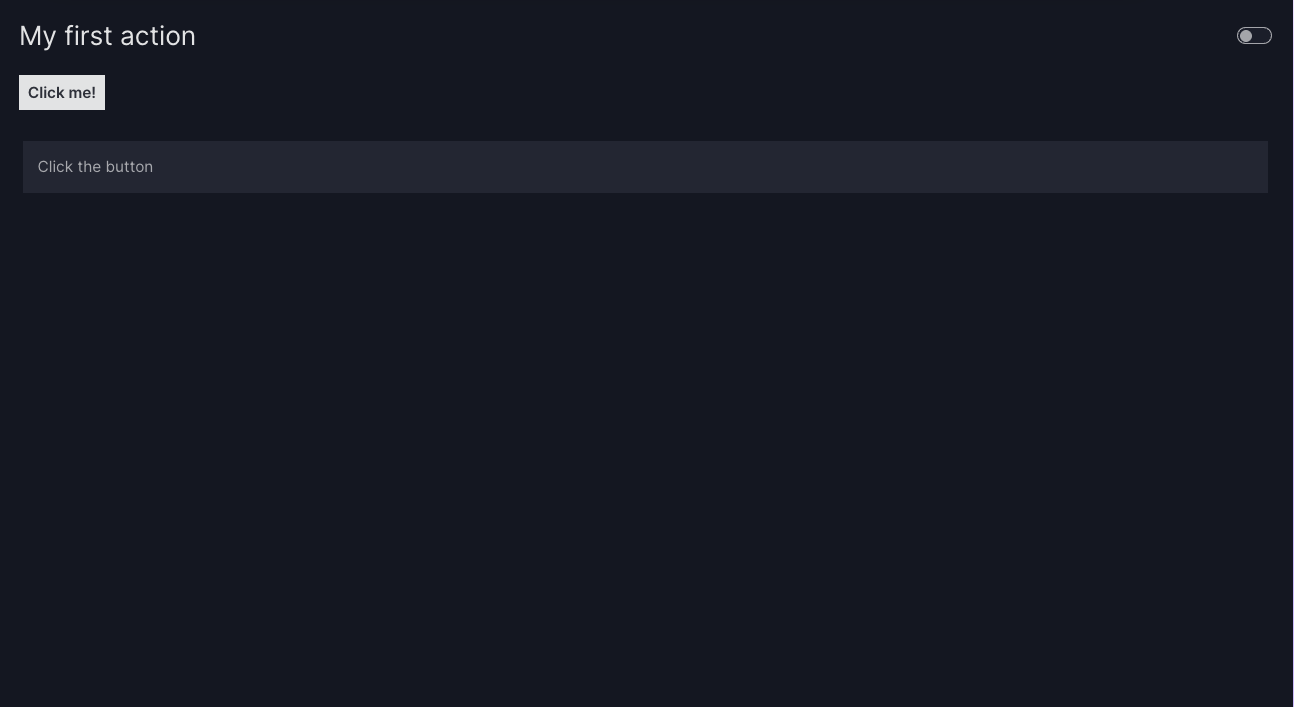

CustAction1

We have specified that a button should be included in the page layout but haven't configured what should happen when it is clicked. Let's define an action for that and attach it to the button with the actions argument and the Action model.

A simple action

from datetime import datetime, timezone

import vizro.models as vm
from vizro import Vizro
from vizro.models.types import capture


@capture("action")  # (1)!
def update_card():  # (2)!
    time_format = "%H:%M:%S %Z"
    now = datetime.now(timezone.utc)
    time = now.strftime(time_format)
    return f"🕰️ The time is {time}"  # (3)!


page = vm.Page(
    title="My first action",
    layout=vm.Flex(),
    components=[
        vm.Button(
            actions=vm.Action(  # (4)!
                function=update_card(),
                outputs="time_card",
            )
        ),
        vm.Card(id="time_card", text="Click the button"),  # (5)!
    ],
)

dashboard = vm.Dashboard(pages=[page])
Vizro().build(dashboard).run()

Run and edit this code in Py.Cafe

  1. You can write a simple action using the capture("action") decorator. This prepares a function to be used as a Vizro action.
  2. For now, the update_card function has no arguments.
  3. An action doesn't need to have outputs, but this one returns a string. An action can return values of any Python type that can be converted to JSON.
  4. We attach the action to the vm.Button model using the actions argument. We call the action function with function=update_card() (remember the ()) and set the output to "time_card".
  5. To use the vm.Card as an output, we supply id="time_card" that matches onto the action's outputs. It does not matter that this component is defined after the vm.Action that uses it.

CustAction2

Congratulations on writing your first action! Before clicking the button, the card's text is "Click the button". When you click the button, the update_card action is triggered. This Python function executes on the server to find the current time in the UTC timezone and return a string "The time is ...". The resulting value is sent back to the user's screen and updates the text of the component with id="time_card". This is the action's output.

As we cover increasingly complex actions, it can be very helpful to understand the actions using a flowchart similar to Dash dev tools' callback graph. We can visualize the above example as follows:

graph TD
  submit_button == trigger ==> update_card([update_card]) -- output --> time_card

In this flowchart, the rectangular boxes refer to Vizro models that are used as a trigger and output for an action. The action function is shown in a round box, and we use a thick line for the trigger.

Runtime input

Let's extend our action to depend on an input from the user's screen. As before, let's start by adding something to the layout and then handle the action. Here we create a small form by adding a Switch to the layout that lets the user specify whether they would like to use the 12- or 24-hour clock.

Add Switch to layout

from datetime import datetime, timezone

import vizro.models as vm
from vizro import Vizro
from vizro.models.types import capture


@capture("action")
def update_card():
    time_format = "%H:%M:%S %Z"
    now = datetime.now(timezone.utc)
    time = now.strftime(time_format)
    return f"🕰️ The time is {time}"


vm.Container.add_type("components", vm.Switch)  # (1)!

page = vm.Page(
    title="My first action",
    layout=vm.Flex(),
    components=[
        vm.Container(  # (2)!
            layout=vm.Flex(direction="row"),
            variant="outlined",
            components=[
                vm.Switch(id="clock_switch", title="24-hour clock", value=True),
                vm.Button(
                    actions=vm.Action(
                        function=update_card(),
                        outputs="time_card",
                    ),
                ),
            ],
        ),
        vm.Card(id="time_card", text="Click the button"),
    ],
)

dashboard = vm.Dashboard(pages=[page])
Vizro().build(dashboard).run()

Run and edit this code in Py.Cafe

  1. Currently Switch is designed to be used as a control selector. In future, Vizro will have a dedicated Form model for the creation of forms. For now, we add them directly as components inside a Container. For this to be a valid configuration we must first do add_type as for a custom component.
  2. We group the form inputs into a styled container to achieve some visual separation of the form inputs and outputs. This is purely stylistic and does not affect the operation of actions.

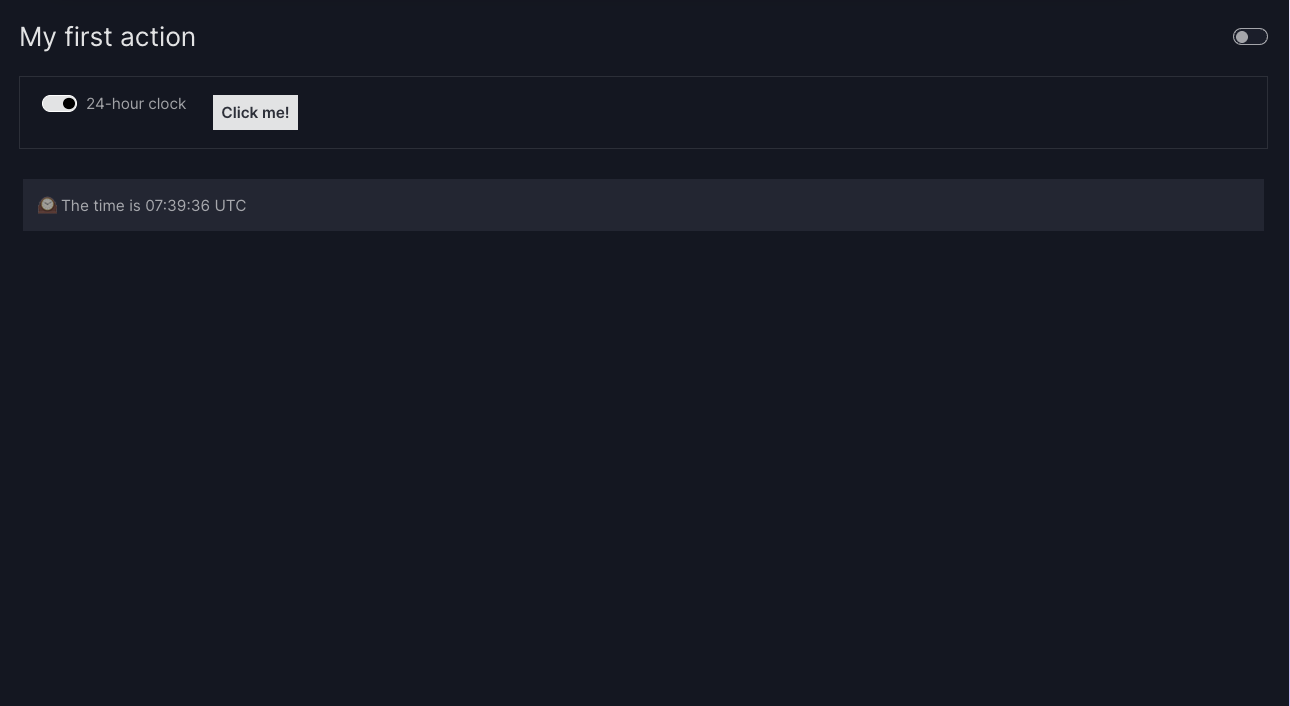

CustAction3

Now we need to connect vm.Switch(id="clock_switch") to our update_card action. We add an argument use_24_hour_clock to the update_card function and configure the function call in vm.Action to use the clock_switch component as the input value of this argument.

Connect Switch to update_card

from datetime import datetime, timezone

import vizro.models as vm
from vizro import Vizro
from vizro.models.types import capture


@capture("action")
def update_card(use_24_hour_clock):   # (1)!
     time_format = "%H:%M:%S %Z" if use_24_hour_clock else "%I:%M:%S %p %Z"   # (2)!
     now = datetime.now(timezone.utc)
     time = now.strftime(time_format)
     return f"🕰️ The time is {time}"


vm.Container.add_type("components", vm.Switch)

page = vm.Page(
     title="My first action",
     layout=vm.Flex(),
     components=[
         vm.Container(
             layout=vm.Flex(direction="row"),
             variant="outlined",
             components=[
                 vm.Switch(id="clock_switch", title="24-hour clock", value=True),
                 vm.Button(
                     actions=vm.Action(
                         function=update_card(use_24_hour_clock="clock_switch"),  # (3)!
                         outputs="time_card",
                     ),
                 ),
             ],
         ),
         vm.Card(id="time_card", text="Click the button"),
     ],
)

dashboard = vm.Dashboard(pages=[page])
Vizro().build(dashboard).run()

Run and edit this code in Py.Cafe

  1. We add an argument use_24_hour_clock to update_card. This will receive a boolean value True or False.
  2. time_format now depends on the value of use_24_hour_clock.
  3. The argument use_24_hour_clock is set at runtime to the value of the clock_switch component. This will be True or False depending on whether the switch is toggled on or off. Here we use a keyword argument but, just like a normal Python function call, we could also use a positional argument as update_card("clock_switch").

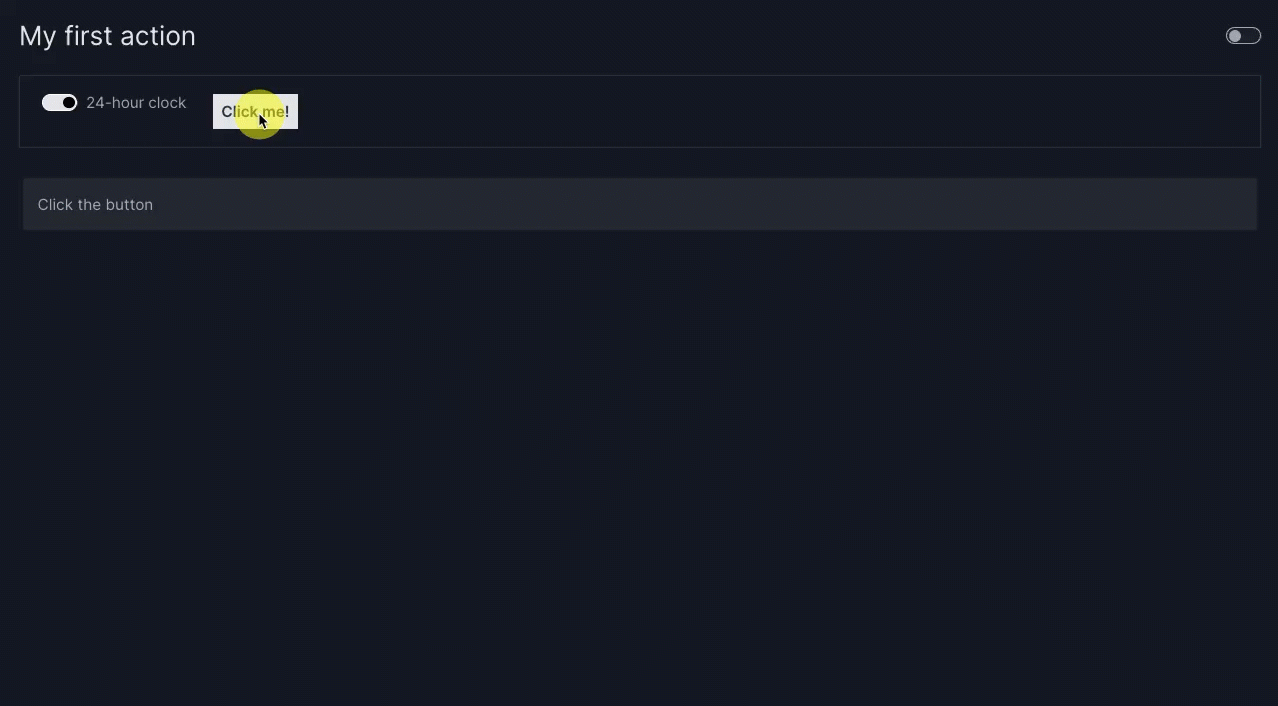

CustAction4

Have a go at toggling the switch and clicking the button. You should find that the format of the time shown changes between 12- and 24-hour clock. Note that toggling the clock_switch does not by itself trigger update_card. The switch is used as a runtime input but the action is triggered only by clicking the button. In fact, this is a key principle governing Vizro actions: an action can have any number of inputs and outputs but only one trigger.

Let's look at what the actions flowchart looks like. We now have a new model with id="clock_switch" that is used as runtime input to the update_card action. We indicate runtime inputs using a dotted line.

graph TD
  subgraph screen_1[" "]
    clock_switch
    submit_button
  end

  clock_switch -. runtime input .-> update_card -- output --> time_card
  submit_button == trigger ==> update_card([update_card])

Action inputs and outputs can be used in multiple actions; there can be any number of actions that use the same clock_switch, submit_button and time_card as inputs or outputs.

Multiple inputs and outputs

Let's extend our example to handle multiple inputs and outputs. We add another card to show the date and a RadioItems to allow the user to configure the date format.

Multiple inputs and outputs

from datetime import datetime, timezone

import vizro.models as vm
from vizro import Vizro
from vizro.models.types import capture


@capture("action")
def update_cards(use_24_hour_clock, date_format):  # (1)!
     time_format = "%H:%M:%S %Z" if use_24_hour_clock else "%I:%M:%S %p %Z"
     date_format = "%d/%m/%y" if date_format == "DD/MM/YY" else "%m/%d/%y"
     now = datetime.now(timezone.utc)
     time = now.strftime(time_format)
     date = now.strftime(date_format)
     return f"🕰️ The time is {time}", f"📅 The date is {date}"  # (2)!


vm.Container.add_type("components", vm.Switch)
vm.Container.add_type("components", vm.RadioItems)

page = vm.Page(
     title="My first action",
     layout=vm.Flex(),
     components=[
         vm.Container(
             layout=vm.Flex(direction="row"),
             variant="outlined",
             components=[
                 vm.Switch(id="clock_switch", title="24-hour clock", value=True),
                 vm.RadioItems(id="date_radio_items", options=["DD/MM/YY", "MM/DD/YY"]),
                 vm.Button(
                     actions=vm.Action(
                         function=update_cards(use_24_hour_clock="clock_switch", date_format="date_radio_items"),   # (3)!
                         outputs=["time_card", "date_card"],   # (4)!
                     ),
                 ),
             ],
         ),
         vm.Card(id="time_card", text="Click the button"),
         vm.Card(id="date_card", text="Click the button"),
     ],
)

dashboard = vm.Dashboard(pages=[page])
Vizro().build(dashboard).run()

Run and edit this code in Py.Cafe

  1. We rename the function update_cards with an s and an argument date_format. This will receive a string value "DD/MM/YY" or "MM/DD/YY".
  2. We now return two strings.
  3. The new argument date_format is set by vm.RadioItems(date_radio_items).
  4. There are now two outputs: time_card and date_card.

CustAction5

Here's the updated actions flowchart. We now have two inputs and two outputs that are updated simultaneously when the update_cards action is triggered:

graph TD
  subgraph screen_1[" "]
    clock_switch
    date_radio_items
    submit_button
  end

  subgraph screen_2[" "]
    time_card
    date_card
  end

  clock_switch & date_radio_items -. runtime input .-> update_cards -- output --> time_card & date_card
  submit_button == trigger ==> update_cards([update_cards])

The returned values are matched to the outputs in order. If your action has many outputs then it can be a good idea to instead return a dictionary where returned values are labeled by string keys. In this case, outputs should also be a dictionary with matching keys, and the order of entries does not matter:

@capture("action")
def update_cards(use_24_hour_clock, date_format):
    ...
    return {"time_output": f"🕰️ The time is {time}", "date_output": f"📅 The date is {date}"}

...

vm.Action(
   function=update_cards(use_24_hour_clock="clock_switch", date_format="date_radio_items"),
   outputs={"time_output": "time_card", "date_output": "date_card"},  # (1)!
)
  1. outputs={"date_output": "date_card", "time_output": "time_card"} would work exactly the same; the order of entries does not matter.

Actions chains

Sometimes you need a single trigger to execute multiple actions. Vizro uses chains of actions to achieve this. There are two different ways to form an actions chain:

  • Explicit actions chain. When you specify multiple actions as actions=[action_1, action_2, ...] then Vizro executes these actions in order, so that action_2 executes only when action_1 has completed.
  • Implicit actions chain. When one action outputs a trigger of another action then the subsequent action is triggered automatically.

Note

In fact, the examples you have seen so far already contain action chains, just they have been chains with only one action in them. Behind the scenes, actions=action gets converted into actions=[action], an action chains of length one.

Explicit actions chain

Let's add some new functionality to our app that fetches the current weather in Berlin using the Open-Meteo weather API, which is free and does not require an API key. So far our actions have executed quick operations on the server. Making a request to an external API can be much slower. When the button is clicked, we perform the operation in two stages so that the user knows what is happening:

  1. Update cards on the screen to give the time and date, as before, but also give a temporary placeholder message to say that we're fetching the weather. This is done in the update_cards action.
  2. Request the Open-Meteo API and update the placeholder message to give the current temperature in Berlin. This is done in the fetch_weather action.

We explicitly chain together these two actions when the button is clicked by specifying a list of actions as follows:

vm.Button(
    actions=[
        vm.Action(
            function=update_cards(use_24_hour_clock="clock_switch", date_format="date_radio_items"),
            outputs=["time_card", "date_card", "weather_card"],
        ),
        vm.Action(function=fetch_weather(), outputs="weather_card"),
    ],
)

The full code is shown below.

Explicit actions chain
from datetime import datetime, timezone

import requests  # (1)!
import vizro.models as vm
from vizro import Vizro
from vizro.models.types import capture


@capture("action")
def update_cards(use_24_hour_clock, date_format):
    time_format = "%H:%M:%S %Z" if use_24_hour_clock else "%I:%M:%S %p %Z"
    date_format = "%d/%m/%y" if date_format == "DD/MM/YY" else "%m/%d/%y"
    now = datetime.now(timezone.utc)
    time = now.strftime(time_format)
    date = now.strftime(date_format)
    return f"🕰️ The time is {time}", f"📅 The date is {date}", "Fetching current weather..."  # (2)!


@capture("action")
def fetch_weather():  # (3)!
    berlin_params = {"latitude": 52.5, "longitude": 13.4, "current": "temperature_2m"}
    r = requests.get("https://api.open-meteo.com/v1/forecast", params=berlin_params)
    temperature = r.json()["current"]["temperature_2m"]
    return f"The current temperature in Berlin is {temperature}°C"


vm.Container.add_type("components", vm.Switch)
vm.Container.add_type("components", vm.RadioItems)

page = vm.Page(
    title="My first action",
    layout=vm.Flex(),
    components=[
        vm.Container(
            layout=vm.Flex(direction="row"),
            variant="outlined",
            components=[
                vm.Switch(id="clock_switch", title="24-hour clock", value=True),
                vm.RadioItems(id="date_radio_items", options=["DD/MM/YY", "MM/DD/YY"]),
                vm.Button(
                    id="submit_button",  # (4)!
                    actions=[
                        vm.Action(
                            function=update_cards(use_24_hour_clock="clock_switch", date_format="date_radio_items"),
                            outputs=["time_card", "date_card", "weather_card"],
                        ),
                        vm.Action(function=fetch_weather(), outputs="weather_card"),
                    ],
                ),
            ],
        ),
        vm.Card(id="time_card", text="Click the button"),
        vm.Card(id="date_card", text="Click the button"),
        vm.Card(id="weather_card", text="Click the button"),
    ],
)

dashboard = vm.Dashboard(pages=[page])
Vizro().build(dashboard).run()

Run and edit this code in Py.Cafe

  1. Requests is a popular Python library for performing HTTP requests. It is a third party library but is a dependency of Dash and so should already be available without a pip install.
  2. This now return three strings. "Fetching current weather..." only shows on the screen briefly while the fetch_weather action is executing.
  3. We make a request to the Open-Meteo API to fetch the current temperature at the latitude and longitude of Berlin.
  4. We don't actually need to set id="submit_button" yet but have added it in anticipation of the next section.

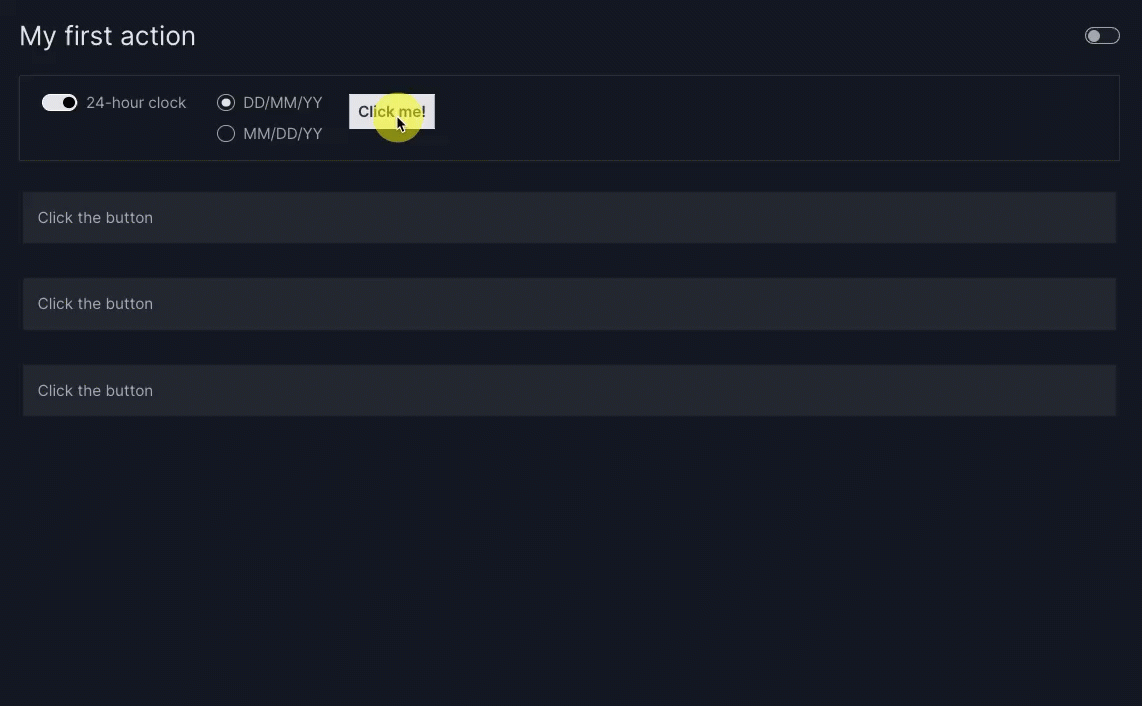

CustAction6

When you click the button, the update_cards action executes and sets the placeholder message "Fetching current weather...". When this action completes, the fetch_weather action executes to find the actual weather and update the message. The Open-Meteo API request generally completes very quickly and so "Fetching current weather..." will only flash on your screen very briefly. If you'd like to artificially slow down the fetch_weather action to see it more clearly then you can add from time import sleep; sleep(3) to the function body to add a delay of 3 seconds.

The actions flowchart now has a new output weather_card and a new action fetch_weather. The trigger for this action is completion of the update_cards action. Note that both these actions share the same output weather_card. In Vizro, a model can be an input or output for any number of actions.

graph TD
  subgraph screen_1[" "]
    clock_switch
    date_radio_items
    submit_button
  end

  subgraph screen_2[" "]
    time_card
    date_card
    weather_card
  end

  clock_switch & date_radio_items -. runtime input .-> update_cards -- output --> time_card & date_card & weather_card
  fetch_weather -- output --> weather_card
  submit_button == trigger ==> update_cards
  update_cards([update_cards]) == trigger ==> fetch_weather([fetch_weather])

Implicit actions chain

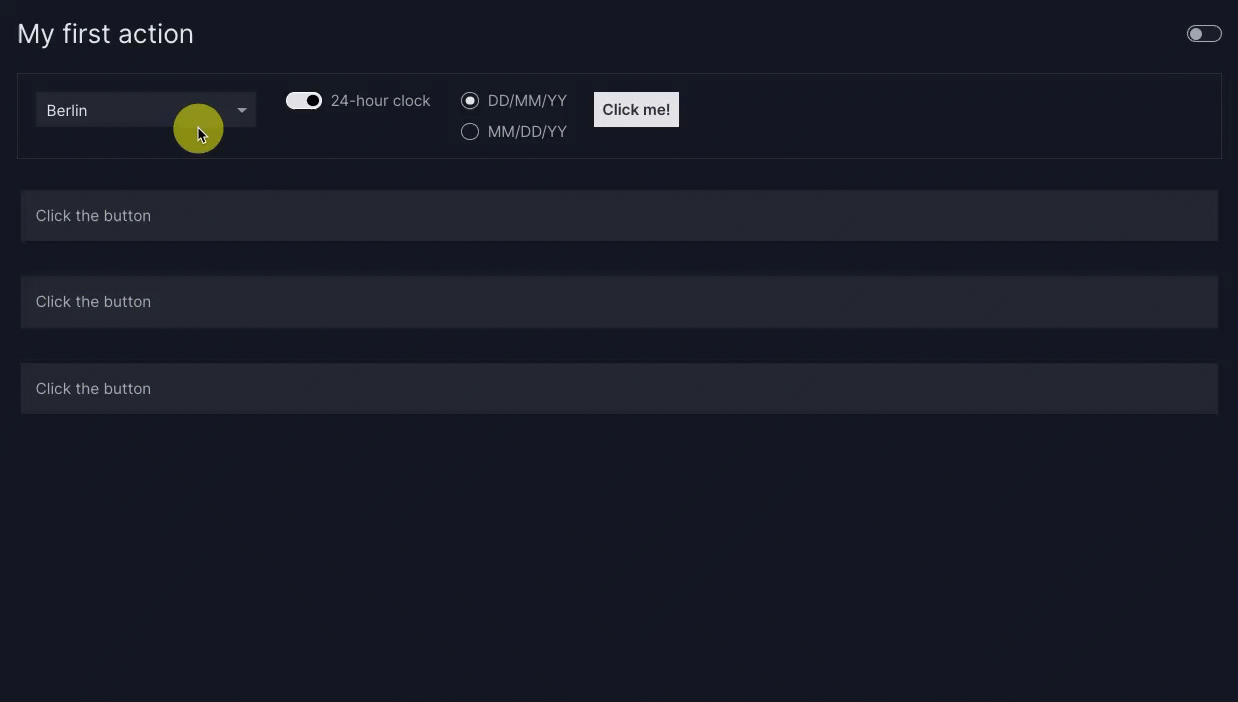

Now we're going to re-work the example to demonstrate an implicit actions chain. Let's add a dropdown menu that allows the user to choose between seeing the weather in Washington, D.C. or in Berlin. When the user selects the city we also update the time and date shown to the format preferred by that location: for Washington, D.C., this is 12-hour clock and MM/DD/YY format; for Berlin, it is 24-hour clock and DD/MM/YY format.

When the city is selected in the dropdown, we want to immediately update the cards without requiring the user to click submit_button. To achieve this, we write a new action update_time_date_formats triggered by the dropdown that outputs to submit_button.

Implicit actions chain

from datetime import datetime, timezone

import requests
import vizro.models as vm
from vizro import Vizro
from vizro.models.types import capture


@capture("action")
def update_cards(use_24_hour_clock, date_format):
    time_format = "%H:%M:%S %Z" if use_24_hour_clock else "%I:%M:%S %p %Z"
    date_format = "%d/%m/%y" if date_format == "DD/MM/YY" else "%m/%d/%y"
    now = datetime.now(timezone.utc)
    time = now.strftime(time_format)
    date = now.strftime(date_format)
    return f"🕰️ The time is {time}", f"📅 The date is {date}", "Fetching current weather..."


@capture("action")
def fetch_weather(location):  # (1)!
    berlin_params = {"latitude": 52.5, "longitude": 13.4, "current": "temperature_2m"}
    washington_dc_params = {"latitude": 38.9, "longitude": -77.0, "current": "temperature_2m"}
    params = berlin_params if location == "Berlin" else washington_dc_params
    r = requests.get("https://api.open-meteo.com/v1/forecast", params=params)
    temperature = r.json()["current"]["temperature_2m"]
    return f"🌡️ The current temperature in {location} is {temperature}°C"


@capture("action")
def update_time_date_formats(location):  # (2)!
    if location == "Berlin":
        return True, "DD/MM/YY", 1  # (3)!
    return False, "MM/DD/YY", 1


vm.Container.add_type("components", vm.Switch)
vm.Container.add_type("components", vm.RadioItems)
vm.Container.add_type("components", vm.Dropdown)

page = vm.Page(
    title="My first action",
    layout=vm.Flex(),
    components=[
        vm.Container(
            layout=vm.Flex(direction="row"),
            variant="outlined",
            components=[
                vm.Dropdown(
                    id="location_dropdown",
                    options=["Berlin", "Washington, D.C."],
                    multi=False,
                    actions=vm.Action(
                        function=update_time_date_formats("location_dropdown"),
                        outputs=["clock_switch", "date_radio_items", "submit_button"],  # (4)!
                    ),
                    extra={"style": {"min-width": "200px"}},
                ),
                vm.Switch(id="clock_switch", title="24-hour clock", value=True),
                vm.RadioItems(id="date_radio_items", options=["DD/MM/YY", "MM/DD/YY"]),
                vm.Button(
                    id="submit_button",
                    actions=[
                        vm.Action(
                            function=update_cards(use_24_hour_clock="clock_switch", date_format="date_radio_items"),
                            outputs=["time_card", "date_card", "weather_card"],
                        ),
                        vm.Action(function=fetch_weather("location_dropdown"), outputs="weather_card"),
                    ],
                ),
            ],
        ),
        vm.Card(id="time_card", text="Click the button"),
        vm.Card(id="date_card", text="Click the button"),
        vm.Card(id="weather_card", text="Click the button"),
    ],
)

dashboard = vm.Dashboard(pages=[page])
Vizro().build(dashboard).run()

Run and edit this code in Py.Cafe

  1. fetch_weather has been updated to take in location. This chooses between Washington, D.C. and Berlin.
  2. When the location is Berlin, update_time_date_formats sets the app to use 24-hour clock and date format DD/MM/YY; otherwise, for Washington, D.C., we use 12-hour clock and date format MM/DD/YY.
  3. In both cases we return 1 to the third output, which is vm.Button(id="submit_button"). This effectively tells Vizro that the button has been clicked 1 time in total. The choice of 1 is arbitrary and does not matter unless you need to keep track of the actual number of times the button has been clicked.
  4. update_time_date_formats sets the clock_switch and date_radio_items form fields and also updates submit_button. This update of submit_button triggers the actions chain associated with the submit button.

CustAction7

Selecting a city in the dropdown triggers the update_time_date_formats action. When this action completes, Vizro automatically triggers the actions that would have been triggered by actually clicking submit_button. This forms an implicit connection between the update_time_date_formats action and the actions associated with submit_button.

Hence when the location dropdown is updated, the following three actions are triggered in order:

  1. update_time_date_formats: triggered by the location dropdown
  2. update_cards: triggered implicitly by completion of update_time_date_formats
  3. fetch_weather: triggered explicitly by completion of update_cards

Our actions flowchart is starting to grow quite large now that there's three actions, but really all that's different is the new update_time_date_formats actions and its associated inputs, outputs and triggers. Try following the line of triggers denoted with thick arrows. The actions [update_date, fetch_weather] that are in an explicit chain are directly connected by a thick arrow. On the other hand, the implicit connection between update_time_date_formats and update_cards is not a direct connection but instead goes through the submit_button model. Note also that the location_dropdown model is used as a trigger and a runtime input simultaneously.

graph TD
  subgraph screen_1[" "]
    clock_switch
    date_radio_items
    submit_button
  end

  subgraph screen_2[" "]
    time_card
    date_card
    weather_card
  end

  clock_switch & date_radio_items -. runtime input .-> update_cards -- output --> time_card & date_card & weather_card
  location_dropdown -. runtime input .-> update_time_date_formats -- output --> clock_switch & date_radio_items & submit_button

  location_dropdown == trigger ==> update_time_date_formats([update_time_date_formats])
  submit_button == trigger ==> update_cards
  update_cards([update_cards]) == trigger ==> fetch_weather([fetch_weather])

  location_dropdown -. runtime input .-> fetch_weather -- output --> weather_card

An implicit action chain can only be formed by triggering the first action of an explicit chain (or a single action, if there is only one action in the chain). Here, update_time_date_formats triggers the first action update_cards in the chain [update_cards, fetch_weather], which then triggers the chained action fetch_weather. It is not possible for an action to implicitly chain on to fetch_weather directly: there is no way for fetch_weather to run other than through the completion of update_cards.

Tip

When you're building more complicated chains of actions, it's often useful to start by sketching an actions flowchart and then work out how to configure the actions to achieve it.

Parallel actions

We are going to implement a few final enhancements to our example to improve the user experience. To make the app feel more responsive, we're going to remove the submit button and instead use clock_switch and date_radio_items as triggers themselves.

The update_cards action currently uses both clock_switch and date_radio_items as inputs and returns both time_card and date_card as outputs. However, really clock_switch only affects time_card, and date_radio_items only affects date_card. Let's split update_cards into two independent actions to reflect this:

  • update_time_card, which updates only time_card
  • update_date_card, which updates only date_card

As an additional enhancement we add location_dropdown as an input to these actions so that we can use the correct timezone for Washington, D.C. and Berlin.

Parallel actions
from datetime import datetime
from zoneinfo import ZoneInfo

import requests
import vizro.models as vm
from vizro import Vizro
from vizro.models.types import capture


@capture("action")
def update_time_card(use_24_hour_clock, location):
    time_format = "%H:%M:%S %Z" if use_24_hour_clock else "%I:%M:%S %p %Z"
    timezone_name = "Europe/Berlin" if location == "Berlin" else "America/New_York"
    now = datetime.now(ZoneInfo(timezone_name))  # (1)!
    time = now.strftime(time_format)
    return f"🕰️ The time is {time}"


@capture("action")
def update_date_card(date_format, location):
    date_format = "%d/%m/%y" if date_format == "DD/MM/YY" else "%m/%d/%y"
    timezone_name = "Europe/Berlin" if location == "Berlin" else "America/New_York"
    now = datetime.now(ZoneInfo(timezone_name))
    date = now.strftime(date_format)
    return f"📅 The date is {date}"


@capture("action")
def fetch_weather(location):
    berlin_params = {"latitude": 52.5, "longitude": 13.4, "current": "temperature_2m"}
    washington_dc_params = {"latitude": 38.9, "longitude": -77.0, "current": "temperature_2m"}
    params = berlin_params if location == "Berlin" else washington_dc_params
    r = requests.get("https://api.open-meteo.com/v1/forecast", params=params)
    temperature = r.json()["current"]["temperature_2m"]
    return f"🌡️ The current temperature in {location} is {temperature}°C"


@capture("action")
def update_time_date_formats(location):
    if location == "Berlin":
        return True, "DD/MM/YY", "Fetching current weather..."  # (2)!
    return False, "MM/DD/YY", "Fetching current weather..."


vm.Container.add_type("components", vm.Switch)
vm.Container.add_type("components", vm.RadioItems)
vm.Container.add_type("components", vm.Dropdown)

page = vm.Page(
    title="My first action",
    layout=vm.Flex(),
    components=[
        vm.Container(
            layout=vm.Flex(direction="row"),
            variant="outlined",
            components=[
                vm.Dropdown(
                    id="location_dropdown",
                    options=["Berlin", "Washington, D.C."],
                    multi=False,
                    actions=[
                        vm.Action(
                            function=update_time_date_formats("location_dropdown"),
                            outputs=["clock_switch", "date_radio_items", "weather_card"],
                        ),
                        vm.Action(function=fetch_weather("location_dropdown"), outputs="weather_card"),
                    ],
                    extra={"style": {"min-width": "200px"}},
                ),
                vm.Switch(
                    id="clock_switch",
                    title="24-hour clock",
                    value=True,
                    actions=vm.Action(function=update_time_card("clock_switch", "location_dropdown"), outputs="time_card"),

                ),
                vm.RadioItems(
                    id="date_radio_items",
                    options=["DD/MM/YY", "MM/DD/YY"],
                    actions=vm.Action(function=update_date_card("date_radio_items", "location_dropdown"), outputs="date_card"),
                ),
            ],
        ),
        vm.Card(id="time_card", text="Click the button"),
        vm.Card(id="date_card", text="Click the button"),
        vm.Card(id="weather_card", text="Click the button"),
    ],
)

dashboard = vm.Dashboard(pages=[page])
Vizro().build(dashboard).run()

Run and edit this code in Py.Cafe

  1. update_time_card and update_date_card are now timezone-sensitive. We use the location set by the dropdown to choose the appropriate timezone.
  2. Now that submit_button no longer exists, it is the responsibility of update_time_date_formats to update weather_card with the "Fetching current weather..." placeholder. This action is otherwise unchanged.

CustAction8

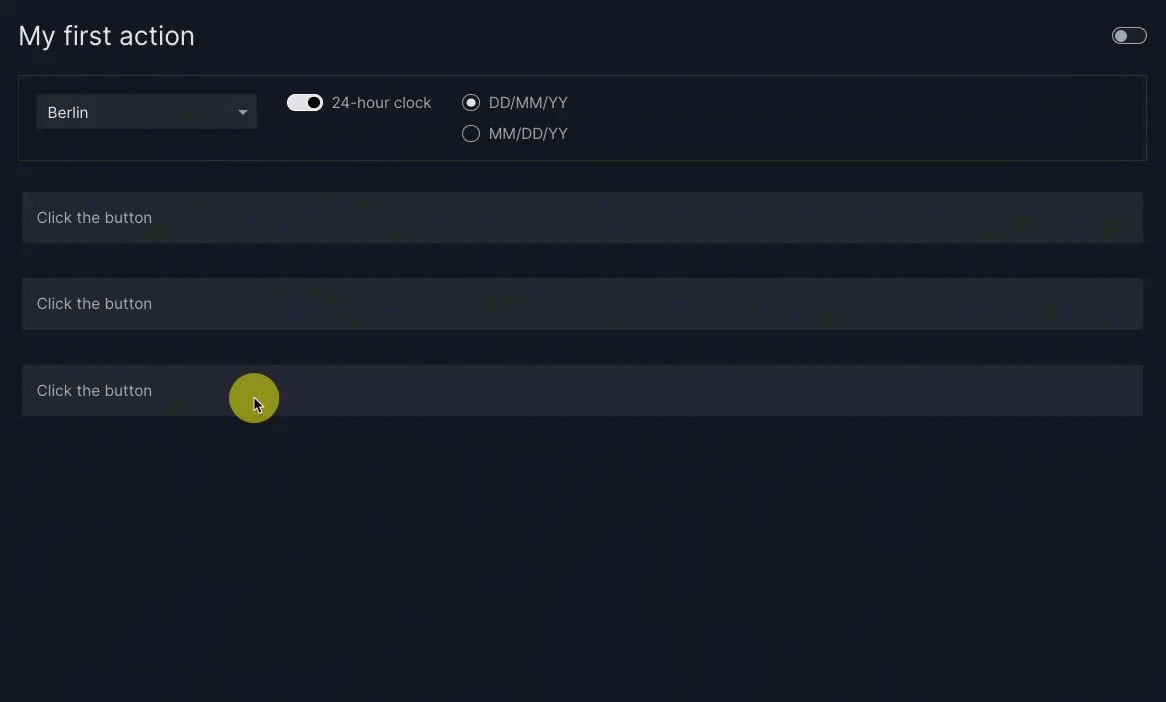

Play around with the app for a while to make sure you understand its behavior:

  • When you click the switch, just the time card updates.
  • When you click the radio items, just the date card updates.
  • When you use the dropdown, the switch and radio items update, which in turns updates the time and date cards, and the weather is fetched after an initial placeholder message is shown.

Now that you're familiar with the notation of an actions flowchart we're going to make a few simplifications so that it doesn't get too large to understand. We no longer show the runtime inputs at all, and we omit the labels from the lines showing outputs and triggers (still shown with thick lines).

graph TD
  subgraph screen_1[" "]
    clock_switch
    date_radio_items
  end

  subgraph screen_2[" "]
    time_card
    date_card
    weather_card
  end

  update_time_card --> time_card
  update_date_card --> date_card
  update_time_date_formats --> weather_card & clock_switch & date_radio_items
  fetch_weather --> weather_card

  location_dropdown ==> update_time_date_formats([update_time_date_formats])
  update_time_date_formats ==> fetch_weather([fetch_weather])
  clock_switch ==> update_time_card([update_time_card])
  date_radio_items ==> update_date_card([update_date_card])

We still have an explicit actions chain [update_time_date_formats, fetch_weather], since these are directly connected by a thick arrow. The connections between update_time_date_formats and the update_time_card and update_date_card actions are implicit since there is no direct connection; the lines go through intermediate models clock_switch and date_radio_items respectively.

In terms of execution order, we know that fetch_weather can only execute once update_time_date_formats has completed since these are in an explicit actions chain. But when update_time_date_formats completes, as well as triggering fetch_weather, it also implicitly triggers update_time_card and update_date_card simultaneously. Looking at the flowchart, we can see that all three of these actions can run in parallel and, in general, will do so. Each action will update its outputs on screen as soon as it has completed.

Parallel execution is not guaranteed

The reason we say that the actions will in general run in parallel wherever possible is that, as explained in the Dash documentation, execution depends on the server environment. If you use the Flask development server, it is by default set to run multi-threaded and so actions can execute in parallel. In production, if you use gunicorn with multiple workers then multiple actions can run in parallel.

However, if you work in PyCafe you will find that multiple actions cannot run in parallel. This is a known limitation of PyCafe. In this case, the three actions fetch_weather, update_time_card and update_date_card run serially, in an order that should not be relied upon. The same would happen if you ran the Flask development server with threaded=False or ran gunicorn with a single worker.

Handle errors and debug

So far we have just considered the "happy path" where all actions run as planned. Let's also look at what happens if an action does not complete successfully.

For example, let's say that the HTTP request to Open-Meteo in fetch_weather fails, for example due to a network problem or an incorrect URL. If we forget to include the http:// in the request URL then requests raises a Python exception requests.exceptions.MissingSchema:

@capture("action")
def fetch_weather(location):
    ...
    r = requests.get("api.open-meteo.com/v1/forecast", params=params)

Now when the fetch_weather action runs you will see an error message about requests.exceptions.MissingSchema in the logs of the terminal where you run python app.py. Once a Python exception has been raised in a Vizro action, execution of the action ceases immediately and no outputs of that action will be updated. To the dashboard user it will not be apparent that an error has occurred; their screen will simply not show an update. In this example, weather_card will be stuck showing the placeholder message "Fetching current weather...".

For a better user experience, we can wrap the relevant code in try/except so that the placeholder message updates with a clear failure message in the case that the HTTP request fails. The full code is shown below.

Handle errors
from datetime import datetime
from zoneinfo import ZoneInfo

import requests
import vizro.models as vm
from vizro import Vizro
from vizro.models.types import capture


@capture("action")
def update_time_card(use_24_hour_clock, location):
    time_format = "%H:%M:%S %Z" if use_24_hour_clock else "%I:%M:%S %p %Z"
    timezone_name = "Europe/Berlin" if location == "Berlin" else "America/New_York"
    now = datetime.now(ZoneInfo(timezone_name))
    time = now.strftime(time_format)
    return f"🕰️ The time is {time}"


@capture("action")
def update_date_card(date_format, location):
    date_format = "%d/%m/%y" if date_format == "DD/MM/YY" else "%m/%d/%y"
    timezone_name = "Europe/Berlin" if location == "Berlin" else "America/New_York"
    now = datetime.now(ZoneInfo(timezone_name))
    date = now.strftime(date_format)
    return f"📅 The date is {date}"


@capture("action")
def fetch_weather(location):
    berlin_params = {"latitude": 52.5, "longitude": 13.4, "current": "temperature_2m"}
    washington_dc_params = {"latitude": 38.9, "longitude": -77.0, "current": "temperature_2m"}
    params = berlin_params if location == "Berlin" else washington_dc_params
    try:
        r = requests.get("api.open-meteo.com/v1/forecast", params=params)
        temperature = r.json()["current"]["temperature_2m"]  # (1)!
    except:
        return "❗ Could not fetch weather"
    return f"🌡️ The current temperature in {location} is {temperature}°C"


@capture("action")
def update_time_date_formats(location):
    if location == "Berlin":
        return True, "DD/MM/YY", "Fetching current weather..."
    return False, "MM/DD/YY", "Fetching current weather..."


vm.Container.add_type("components", vm.Switch)
vm.Container.add_type("components", vm.RadioItems)
vm.Container.add_type("components", vm.Dropdown)

page = vm.Page(
    title="My first action",
    layout=vm.Flex(),
    components=[
        vm.Container(
            layout=vm.Flex(direction="row"),
            variant="outlined",
            components=[
                vm.Dropdown(
                    id="location_dropdown",
                    options=["Berlin", "Washington, D.C."],
                    multi=False,
                    actions=[
                        vm.Action(
                            function=update_time_date_formats("location_dropdown"),
                            outputs=["clock_switch", "date_radio_items", "weather_card"],
                        ),
                        vm.Action(function=fetch_weather("location_dropdown"), outputs="weather_card"),
                    ],
                    extra={"style": {"min-width": "200px"}},
                ),
                vm.Switch(
                    id="clock_switch",
                    title="24-hour clock",
                    value=True,
                    actions=vm.Action(function=update_time_card("clock_switch", "location_dropdown"), outputs="time_card"),

                ),
                vm.RadioItems(
                    id="date_radio_items",
                    options=["DD/MM/YY", "MM/DD/YY"],
                    actions=vm.Action(function=update_date_card("date_radio_items", "location_dropdown"), outputs="date_card"),
                ),
            ],
        ),
        vm.Card(id="time_card", text="Click the button"),
        vm.Card(id="date_card", text="Click the button"),
        vm.Card(id="weather_card", text="Click the button"),
    ],
)

dashboard = vm.Dashboard(pages=[page])
Vizro().build(dashboard).run()

Run and edit this code in Py.Cafe

  1. Fetching temperature from the response is another potential source of an exception, for example if the structure of the Open-Meteo response changes, so we also put this line inside the try.

CustAction9

If an action raises an uncaught exception then any actions that would be triggered by successful completion of the action, either in an explicit or implicit action chain, will also not execute. If you wish to deliberately cancel execution of an action then you can raise dash.exceptions.PreventUpdate. This will mean that none of the action's outputs are updated and no chained actions execute. For more fine-grained control, you can instead prevent update to only some of the outputs of an action by returning dash.no_update. In this case, only those chained actions that are triggered by outputs that did not update will be prevented from executing.

Tip

If you develop in debug mode with run(debug=True) then the exception and traceback are shown in your browser, which is usually more convenient.

When developing your app, it can also be very useful to insert a breakpoint inside the code of an action. This enables you to pause execution of an action, inspect variables and understand what is happening. You can add breakpoints with most popular coding tools, for example VS Code.

Security

When writing actions, you should always be careful when handling runtime input from untrusted users. When a Vizro action is triggered, there is an HTTP request sent from the user's browser to the server. In theory, this contains the values of the action's runtime inputs fetched from the user's screen. However, there are ways for a malicious user to artificially construct an HTTP request that sends arbitrary values to the server. You should never assume that the values of runtime inputs in your Python action function are restricted to those that you have configured to be shown on the user's screen.

For example, our vm.Dropdown(id="location_dropdown") has options=["Berlin", "Washington, D.C."], which presents only those two location options on the user's screen. Let's look at one action which uses this as runtime input:

@capture("action")
def update_time_card(use_24_hour_clock, location):
    ...
    timezone_name = "Europe/Berlin" if location == "Berlin" else "America/New_York"

We might expect the value of location to be either "Berlin" or "Washington, D.C.", as per the dropdown's available options, but we can never guarantee that this is the case. A malicious user can trigger update_time_card with any JSON-compatible value for location. The code written here has no security risk because if location is set to any value other than "Berlin" then the timezone is set to "America/New_York". This will be the case for both the expected trusted user input location="Washington, D.C." and arbitrary untrusted input such as location="Paris" and location=42.

However, imagine that we had a secret database of all the world's timezones that includes some classified locations not known to the general public. The update_time_card action looks up the timezone of the input location in the database:

SECRET_TIMEZONE_DATABASE = {
    "Berlin": "Europe/Berlin",
    "Washington, D.C.": "America/New_York",
    "Area 51": "America/Los_Angeles",
    "Top secret bunker": "Europe/London",
}

@capture("action")
def update_time_card(use_24_hour_clock, location):
    ...
    timezone_name = SECRET_TIMEZONE_DATABASE[location]

Even though we have set options=["Berlin", "Washington, D.C."] in our vm.Dropdown, a malicious user could construct an HTTP request that sets location="Top secret bunker". There would be nothing to stop update_time_card running and exposing the time at the top secret bunker! You could protect against this by validating that the location value is indeed one of the expected values and raising an exception if not:

from dash.exceptions import PreventUpdate

@capture("action")
def update_time_card(use_24_hour_clock, location):
    if location not in ["Berlin", "Washington, D.C."]:
        raise PreventUpdate
    timezone_name = SECRET_TIMEZONE_DATABASE[location]

In many cases, untrusted user input does not pose a security risk. For example, if we looked up SECRET_TIMEZONE_DATABASE["nonexistent key"] then Python would raise a KeyError exception, which would also cancel execution of the action and not update any information on the user's screen. However, there are certain scenarios, such as file system manipulation and SQL queries, where you should be particularly vigilant.

Key principles of actions

Congratulations on completing the tutorial! You should now be able to write quite complex custom actions. To recap, let's summarize some of the key principles of how actions work.

  • An action is a Python function that executes when it is triggered by a user interacting with a component on their screen.
  • An action can have any number of inputs and outputs but only one trigger.
  • Any number of actions can be chained together. There are two ways to chain actions:
    • Explicitly: when you set actions=[action_1, action_2, ...] then action_2 only runs after action_1 has completed.
    • Implicitly: when one action outputs something that automatically triggers another action.
  • When multiple actions are triggered simultaneously, they usually execute in parallel.
  • You can cancel execution of an action and subsequent chained actions by raising an exception.
  • For security, you should always assume that inputs to your actions have been generated by an untrusted user.
