Explore Vizro

In this tutorial, you'll learn how to build an interactive dashboard with multiple pages, incorporating a wide range of Vizro's components. You can follow along using the written guide below or join in with the accompanying video tutorial.

This tutorial should take about half an hour to finish, so grab a coffee or tea and let's dive in!

Note

If you're looking for a quick start to get up and running with Vizro, consider reviewing the quickstart tutorial before diving into this one.

By the end of this tutorial, you will have learned how to:

  • Explore most of Vizro's components.
  • Use the Vizro visual vocabulary to guide your chart creation.
  • Design custom charts with Plotly Express.
  • Develop multiple pages for the dashboard.
  • Customize the layout of the pages.
  • Add interactivity using filters and parameters.
  • Add a logo and title to the dashboard.
  • Customize the dashboard navigation.

This tutorial uses the tips dataset, which was collected by a waiter who recorded information about each tip he received over several months at a restaurant.

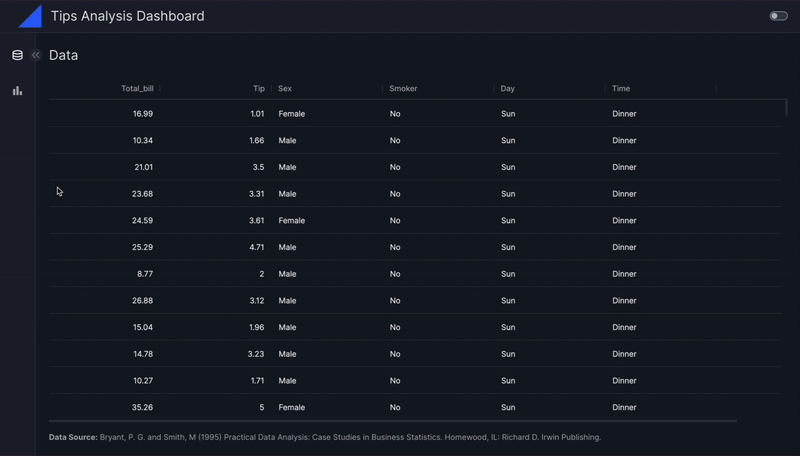

Here is a preview of the dashboard you'll build:

1. Install Vizro or run on PyCafe

There's no need to install Vizro locally because you can experiment with the complete code for the tutorial directly on PyCafe in your browser. We recommend starting with a blank Vizro project on PyCafe and copying the code snippets from this tutorial into it, to build it up from scratch and see how it fits together.

For more information about working with Vizro on PyCafe, check out the PyCafe documentation.

If you prefer working in a Notebook or Python script

To work in a Notebook or locally using a Python script, you need to install Vizro.

Paste the code from the tutorial into a Notebook cell, run the Notebook, and evaluate it.

You will need to restart the kernel each time you run the code. Otherwise, you may encounter errors such as "Components must uniquely map..." because those components persist from the previous execution. As an alternative to restarting the kernel each time, you can add a cell containing from vizro import Vizro; Vizro._reset() to the top of your Notebook and re-run it each time you re-run your code. With this method, there is no need to restart the Jupyter kernel.

If you prefer using Python scripts instead of Notebooks, follow these steps:

  1. Create a new script called app.py.
  2. Copy the code above into the script.
  3. Navigate to the directory where app.py file is located using your terminal.
  4. Run the script by executing the command python app.py.

Once the script is running, open your web browser and navigate to localhost:8050 to view the dashboard. To enable debug mode for hot reloading, add debug=True inside the run() method at the end of your app.py file:

Vizro().build(dashboard).run(debug=True)

2. Understand the basics

Before we dive in, let's quickly cover some basics:

At the top level, you'll be creating a Dashboard. Here's what you can configure at the dashboard-level:

  • Pages: You can add multiple pages; they are the building blocks of your dashboard.
  • Navigation: You can customize navigation between those different pages.
  • Title/Logo: You can add your own titles and logos.

For each Page, you can also configure the following:

  • Components: Add charts, tables, input/output interfaces, and more.
  • Controls: Include filters and parameters.
  • Layouts: Customize the placement of components within a page.
  • Actions: Create interactions between components using actions.

3. Create a first page

In this section, you learn how to create a new Page and store it in a variable called first_page.

A Page model is the foundation of any Vizro dashboard. It uses a set of components to display content. For a comprehensive list of all Vizro components, refer to the components overview page.

3.1. Add a table

To start, let's get an overview of the data by displaying it in a table using AgGrid. These steps create a page and add a table to it:

  1. Import the necessary packages and load the dataset.
  2. Create a Page and set its title to "Data".
  3. Add an AgGrid component to the components list.
  4. Use the dash_ag_grid function inside the figure argument of AgGrid.
  5. Provide details about the data source in the footer argument of AgGrid.
  6. Add the newly created page to the list of pages in the Dashboard model.

First Page

import vizro.models as vm
import vizro.plotly.express as px
from vizro import Vizro
from vizro.tables import dash_ag_grid
from vizro.models.types import capture
from vizro.figures import kpi_card

tips = px.data.tips()

first_page = vm.Page(
    title="Data",
    components=[
        vm.AgGrid(
            figure=dash_ag_grid(tips),
            footer="""**Data Source:** Bryant, P. G. and Smith, M. (1995).
            Practical Data Analysis: Case Studies in Business Statistics.
            Homewood, IL: Richard D. Irwin Publishing.""",
        ),
    ],
)

dashboard = vm.Dashboard(pages=[first_page])
Vizro().build(dashboard).run()

Run and edit this code in Py.Cafe

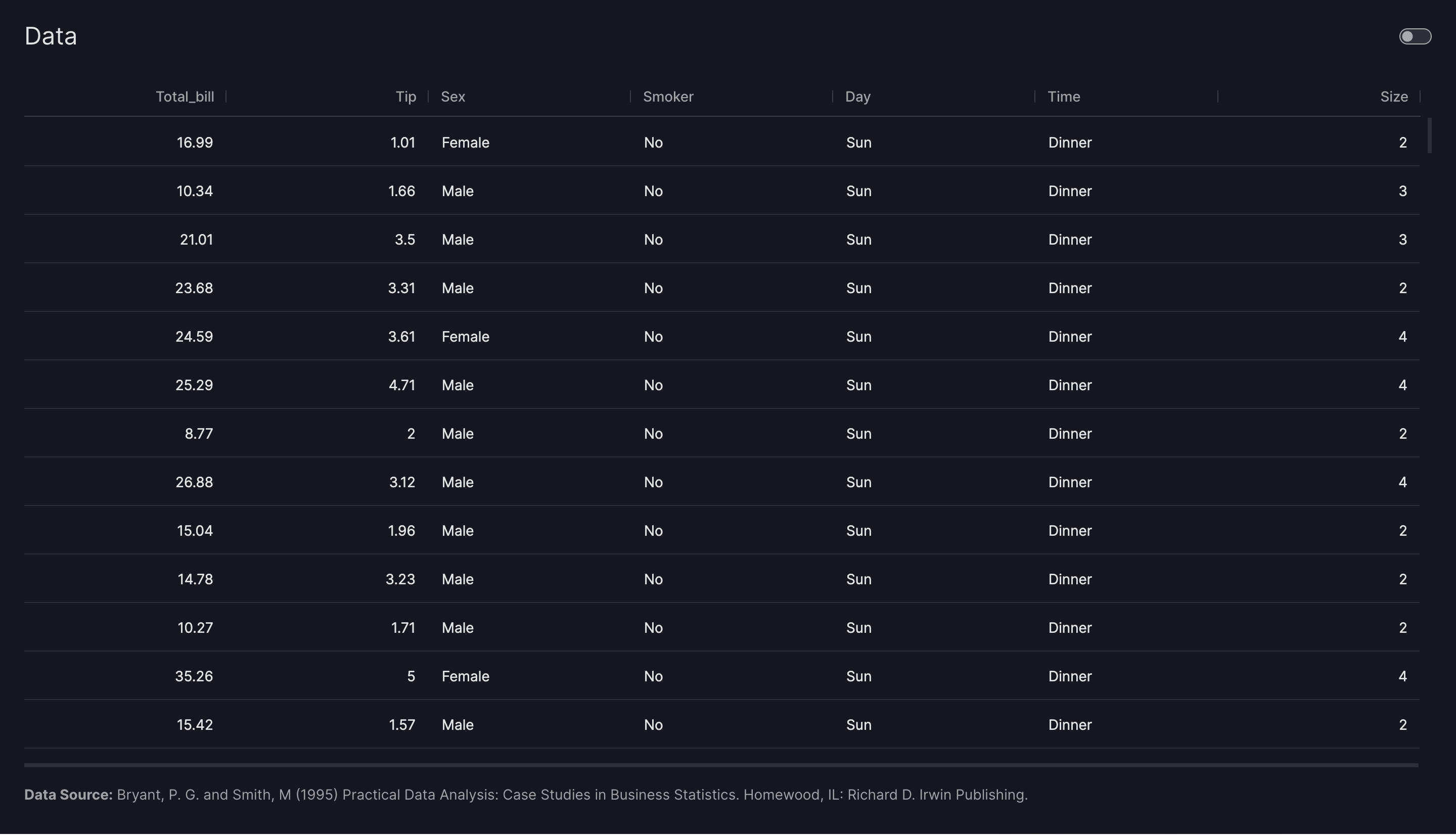

FirstPage

After running your code (either locally or on PyCafe), you can now view the dashboard (on localhost:8050 if you ran it locally, or on the right part of the screen if you are using PyCafe).

Take a moment to explore the data in the table. You can sort, filter, and search within the AgGrid columns to better understand the dataset.

In the top-right corner of the dashboard, you'll notice a toggle to switch between dark and light themes. Try it out!

3.2. Add an export data button

Next, you'll add a Button that lets users export the data currently shown in your dashboard.

This is an example of an action. Vizro provides several built-in actions, and you can also write your own custom actions.

These steps add an export data button:

  1. Add a Button model to the components list and set text="Export Data".
  2. Use the actions argument of the Button to specify the built-in export_data action.

Export Data Button

vm.Button(text="Export Data", actions=va.export_data())

import vizro.models as vm
import vizro.plotly.express as px
from vizro import Vizro
from vizro.tables import dash_ag_grid
from vizro.models.types import capture
from vizro.figures import kpi_card
import vizro.actions as va

tips = px.data.tips()

first_page = vm.Page(
    title="Data",
    components=[
        vm.AgGrid(
            figure=dash_ag_grid(tips),
            footer="""**Data Source:** Bryant, P. G. and Smith, M. (1995).
            Practical Data Analysis: Case Studies in Business Statistics.
            Homewood, IL: Richard D. Irwin Publishing.""",
        ),
        vm.Button(text="Export Data", actions=va.export_data()),
    ],
)

dashboard = vm.Dashboard(pages=[first_page])
Vizro().build(dashboard).run()

Run and edit this code in Py.Cafe

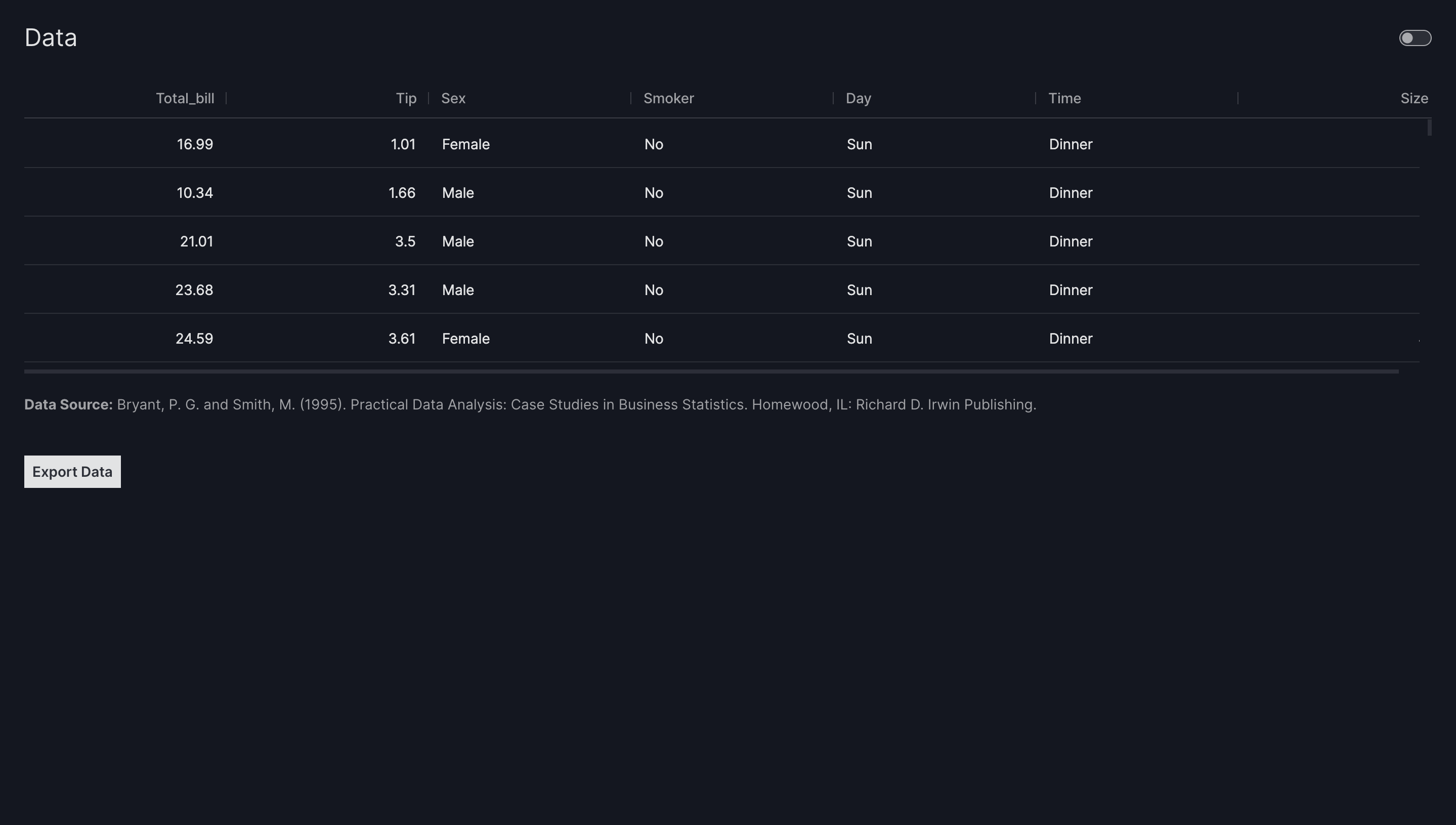

FirstPageButton

Click on the Button and see what happens! 📂

3.3. Configure the layout

Notice there is extra blank space below the button. In this step, you’ll learn how to improve the layout by arranging components more efficiently.

Vizro supports two layouts: Grid and Flex. To understand the differences between them, check out our guide on layouts.

By default, Vizro uses the Grid layout, which arranges components in the order they appear inside components and gives them equal space. However, in our case, we want the Button and AgGrid to only take up the space they need — not equal space.

To achieve this, we'll switch to the Flex layout and set a height for the AgGrid, as the default is 400px otherwise.

  1. In the layout argument of the Page, use the Flex layout model via layout = vm.Flex()
  2. Specify style= {"height": "600px"} inside the dash_ag_grid, as it would otherwise default to 400px.

Use Flex layout

layout = vm.Flex()

import vizro.models as vm
import vizro.plotly.express as px
from vizro import Vizro
from vizro.tables import dash_ag_grid
from vizro.models.types import capture
from vizro.figures import kpi_card
import vizro.actions as va

tips = px.data.tips()

first_page = vm.Page(
    title="Data",
    layout=vm.Flex(),
    components=[
        vm.AgGrid(
            figure=dash_ag_grid(tips, style= {"height": "600px"}),
            footer="""**Data Source:** Bryant, P. G. and Smith, M. (1995).
            Practical Data Analysis: Case Studies in Business Statistics.
            Homewood, IL: Richard D. Irwin Publishing.""",
        ),
        vm.Button(text="Export Data", actions=va.export_data()),
    ],
)

dashboard = vm.Dashboard(pages=[first_page])
Vizro().build(dashboard).run()

Run and edit this code in Py.Cafe

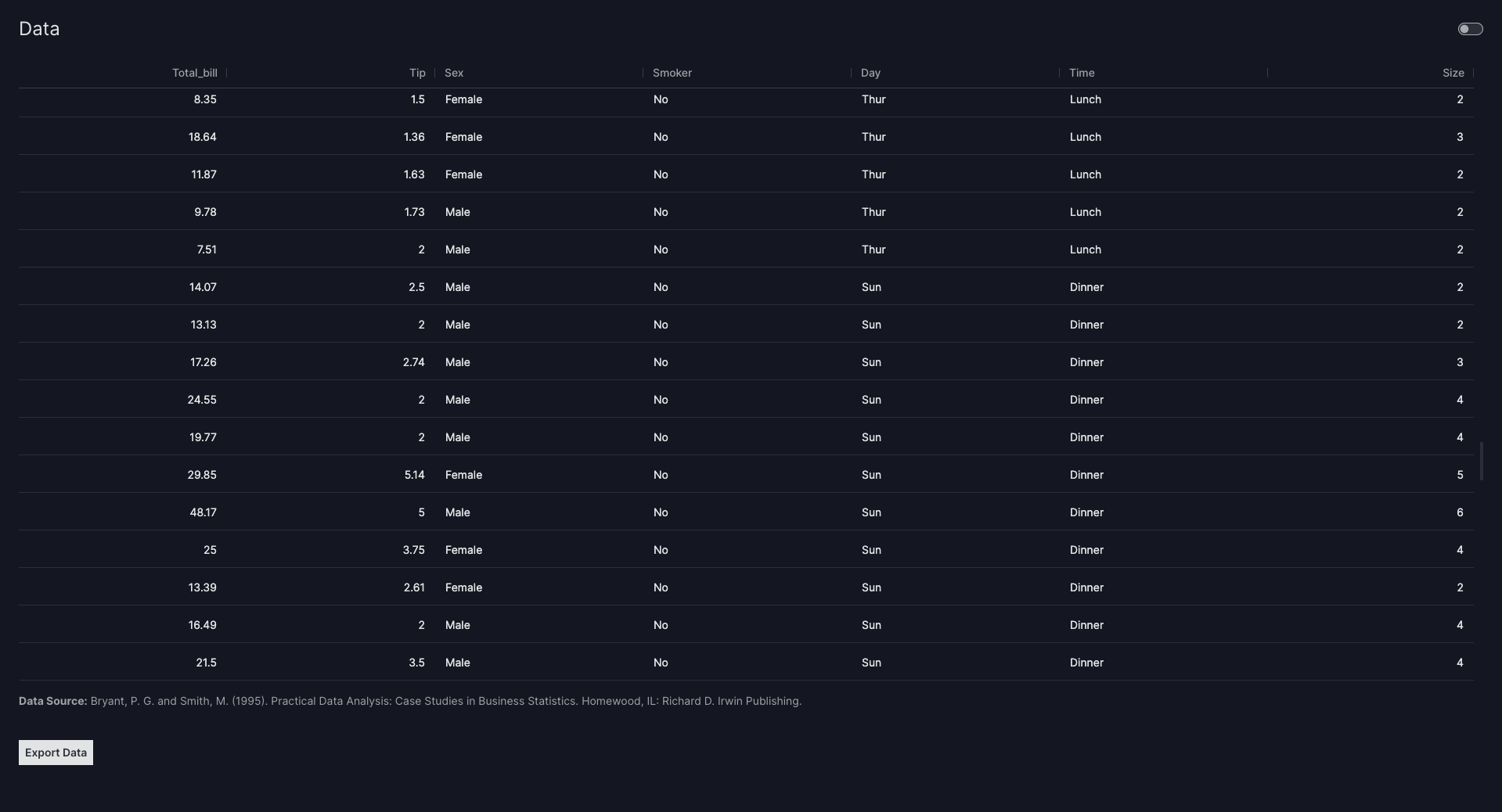

FirstPageLayout

Looks much better already! Great job - you've successfully created your first dashboard page!

4. Create a second page

4.1. Add a chart

Next, you'll learn how to add a second page to the dashboard that features charts and KPI (Key Performance Indicator) cards.

Vizro uses Graph models and Plotly Express functions to create various types of charts. You can explore some of the available chart types and their code examples in the Vizro visual vocabulary.

These steps add a histogram to the page:

  1. Create a second Page and store it in a variable called second_page. Set its title to "Summary".
  2. Add a Graph model to the components list.
  3. Inside the figure argument of the Graph model, use the code for the px.histogram from the visual vocabulary.
  4. Add the new page to the list of pages in the Dashboard model by calling vm.Dashboard(pages=[first_page, second_page]).

Second Page

second_page = vm.Page(
    title="Summary",
    components=[
        vm.Graph(figure=px.histogram(tips, x="total_bill")),
        vm.Graph(figure=px.histogram(tips, x="tip")),
    ],
)
dashboard = vm.Dashboard(pages=[first_page, second_page])

import vizro.models as vm
import vizro.plotly.express as px
from vizro import Vizro
from vizro.tables import dash_ag_grid
from vizro.models.types import capture
from vizro.figures import kpi_card
import vizro.actions as va

tips = px.data.tips()

first_page = vm.Page(
    title="Data",
    components=[
        vm.AgGrid(
            figure=dash_ag_grid(tips),
            footer="""**Data Source:** Bryant, P. G. and Smith, M. (1995).
            Practical Data Analysis: Case Studies in Business Statistics.
            Homewood, IL: Richard D. Irwin Publishing.""",
        ),
        vm.Button(text="Export Data", actions=va.export_data()),
    ],
)

second_page = vm.Page(
    title="Summary",
    components=[
        vm.Graph(figure=px.histogram(tips, x="total_bill")),
        vm.Graph(figure=px.histogram(tips, x="tip")),
    ],
)

dashboard = vm.Dashboard(pages=[first_page, second_page])
Vizro().build(dashboard).run()

Run and edit this code in Py.Cafe

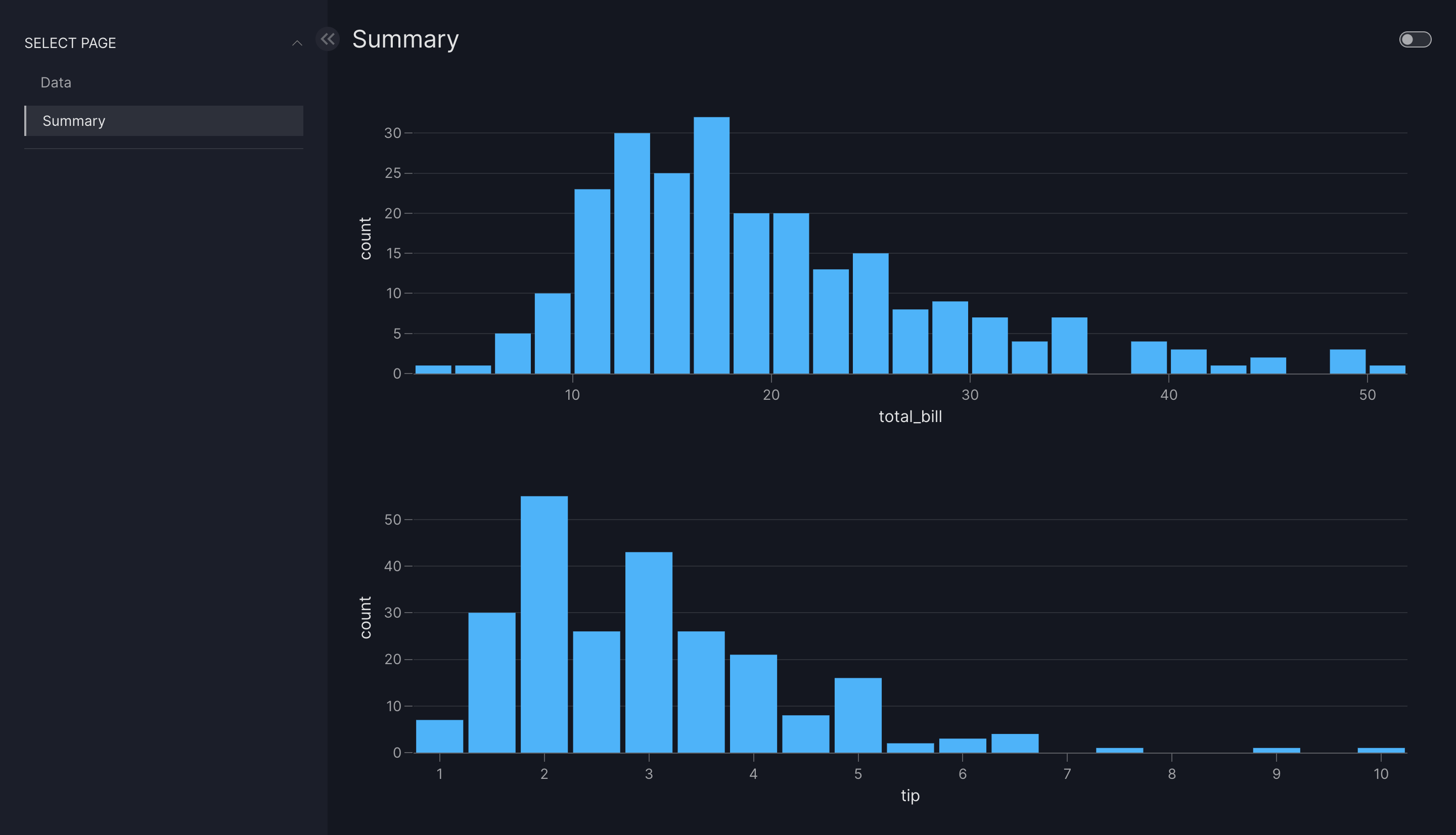

SecondPage

Notice that the charts are automatically stacked vertically in the order specified under components, each taking up equal space. This is the default behavior in Vizro, but you'll learn how to customize the layout later!

Also, a page navigation menu has been added to the left side of the dashboard, enabling you to switch between the two pages we’ve created.

You'll also notice that the left-side menu can be collapsed to provide more space for the dashboard content. Give it a try!

4.2. Add KPI cards

You can combine and arrange various types of components on a dashboard page. Refer to the components overview page for a comprehensive list of available components.

These steps add two KPI cards to the second page:

  1. Add a Figure model to the list of components.
  2. Inside the figure argument of the Figure, use the kpi_card function.
  3. Configure your kpi_card by setting the value_column, agg_func, value_format, and title. To learn more about configuring KPI cards, check out our guide to KPI cards.
  4. Repeat the above steps to add another KPI card to the page.

Add KPI Cards

vm.Figure(
    figure=kpi_card(
        data_frame=tips,
        value_column="total_bill",
        agg_func="mean",
        value_format="${value:.2f}",
        title="Average Bill",
    )
)

vm.Figure(
    figure=kpi_card(
        data_frame=tips,
        value_column="tip",
        agg_func="mean",
        value_format="${value:.2f}",
        title="Average Tips"
    )
)

import vizro.models as vm
import vizro.plotly.express as px
from vizro import Vizro
from vizro.tables import dash_ag_grid
from vizro.models.types import capture
from vizro.figures import kpi_card
import vizro.actions as va

tips = px.data.tips()

first_page = vm.Page(
    title="Data",
    components=[
        vm.AgGrid(
            figure=dash_ag_grid(tips),
            footer="""**Data Source:** Bryant, P. G. and Smith, M. (1995).
            Practical Data Analysis: Case Studies in Business Statistics.
            Homewood, IL: Richard D. Irwin Publishing.""",
        ),
        vm.Button(text="Export Data", actions=va.export_data()),
    ],
)

second_page = vm.Page(
    title="Summary",
    components=[
        vm.Figure(
            figure=kpi_card(
                data_frame=tips,
                value_column="total_bill",
                agg_func="mean",
                value_format="${value:.2f}",
                title="Average Bill",
            )
        ),
        vm.Figure(
            figure=kpi_card(
                data_frame=tips,
                value_column="tip",
                agg_func="mean",
                value_format="${value:.2f}",
                title="Average Tips"
            )
        ),
        vm.Graph(figure=px.histogram(tips, x="total_bill")),
        vm.Graph(figure=px.histogram(tips, x="tip")),
    ],
)

dashboard = vm.Dashboard(pages=[first_page, second_page])
Vizro().build(dashboard).run()

Run and edit this code in Py.Cafe

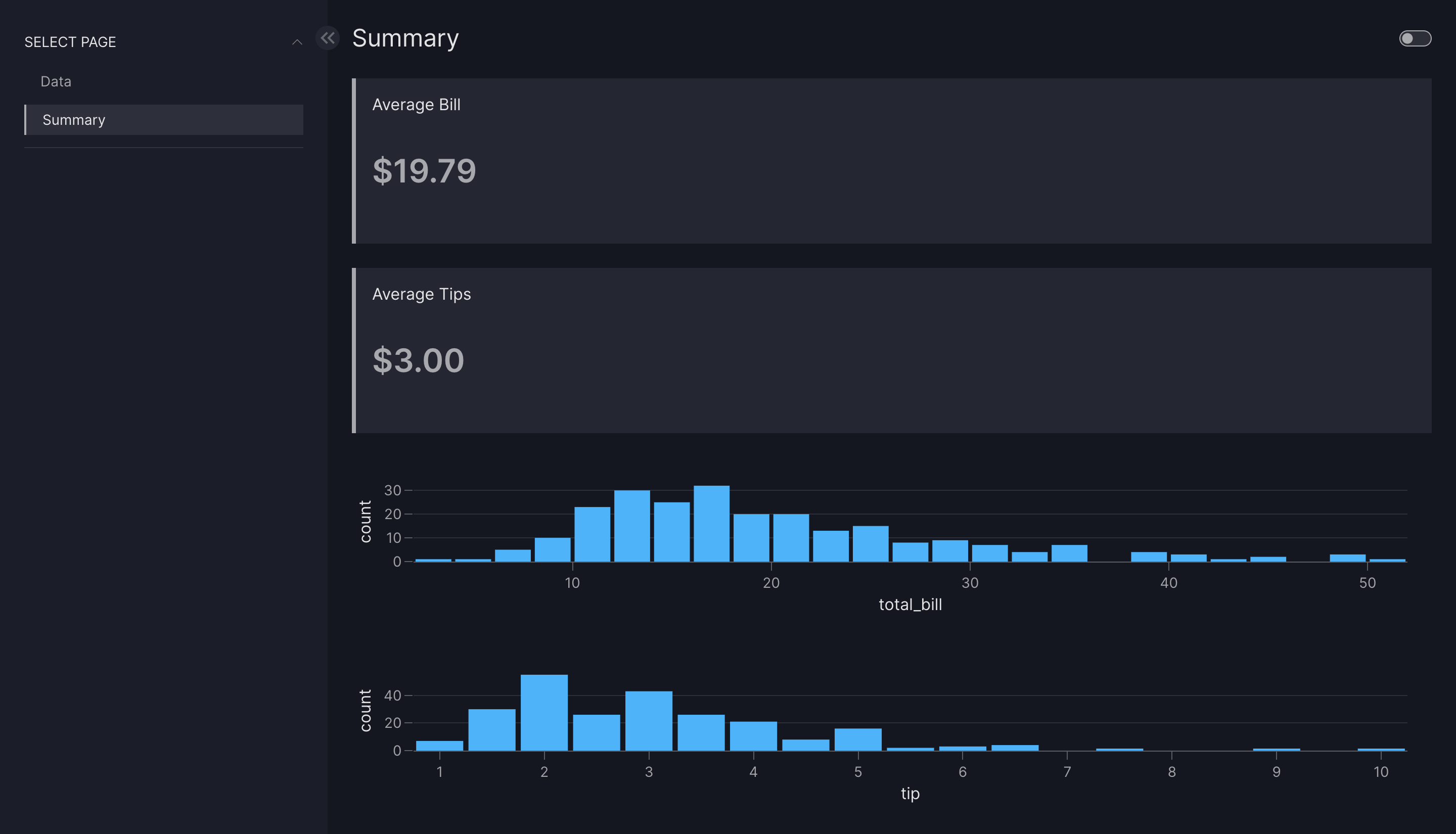

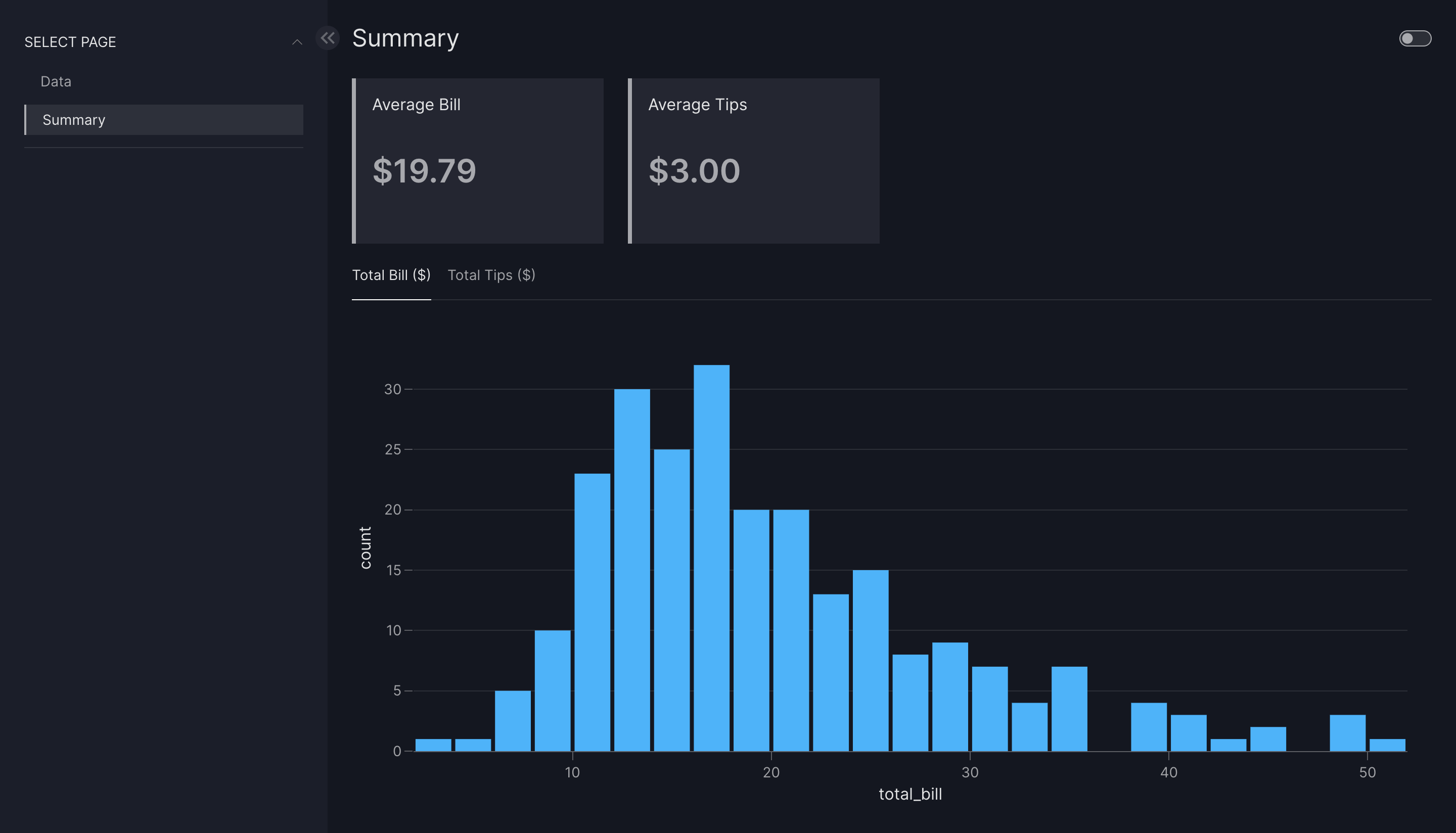

SecondPage2

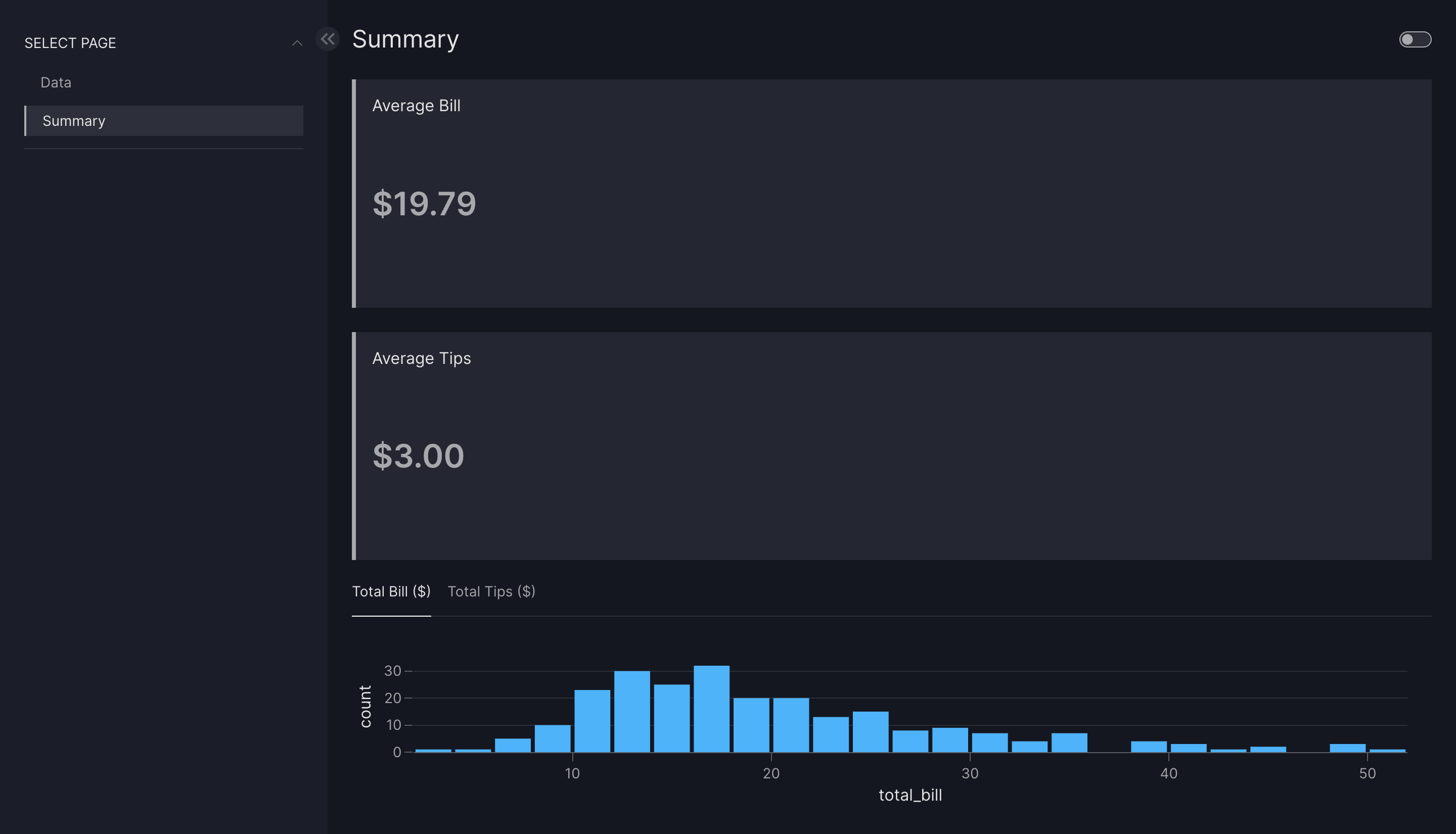

4.3. Add tabs to switch views

You may not want to display both histograms simultaneously and instead prefer to switch between views. You can achieve this by using the Tabs model. For more details, refer to Vizro's tabs user guide.

These steps place the two histograms in separate tabs:

  1. Add each Graph to the components of a Container.
  2. Set the title argument inside each Container to the desired tab name.
  3. Add the containers to the tabs list of the Tabs component.
  4. Add the Tabs component to the components of the Page.

Add Tabs

vm.Tabs(
    tabs=[
        vm.Container(
            title="Total Bill ($)",
            components=[
                vm.Graph(figure=px.histogram(tips, x="total_bill")),
            ],
        ),
        vm.Container(
            title="Total Tips ($)",
            components=[
                vm.Graph(figure=px.histogram(tips, x="tip")),
            ],
        ),
    ],
)

import vizro.models as vm
import vizro.plotly.express as px
from vizro import Vizro
from vizro.tables import dash_ag_grid
from vizro.models.types import capture
from vizro.figures import kpi_card
import vizro.actions as va

tips = px.data.tips()

first_page = vm.Page(
    title="Data",
    components=[
        vm.AgGrid(
            figure=dash_ag_grid(tips),
            footer="""**Data Source:** Bryant, P. G. and Smith, M. (1995).
            Practical Data Analysis: Case Studies in Business Statistics.
            Homewood, IL: Richard D. Irwin Publishing.""",
        ),
        vm.Button(text="Export Data", actions=va.export_data()),
    ],
)

second_page = vm.Page(
    title="Summary",
    components=[
        vm.Figure(
            figure=kpi_card(
                data_frame=tips,
                value_column="total_bill",
                agg_func="mean",
                value_format="${value:.2f}",
                title="Average Bill",
            )
        ),
        vm.Figure(
            figure=kpi_card(
                data_frame=tips,
                value_column="tip",
                agg_func="mean",
                value_format="${value:.2f}",
                title="Average Tips"
            )
        ),
        vm.Tabs(
            tabs=[
                vm.Container(
                    title="Total Bill ($)",
                    components=[
                        vm.Graph(figure=px.histogram(tips, x="total_bill")),
                    ],
                ),
                vm.Container(
                    title="Total Tips ($)",
                    components=[
                        vm.Graph(figure=px.histogram(tips, x="tip")),
                    ],
                ),
            ],
        )
    ],
)

dashboard = vm.Dashboard(pages=[first_page, second_page])
Vizro().build(dashboard).run()

Run and edit this code in Py.Cafe

SecondPage3

Take a moment to switch between the tabs!

As you explore the dashboard, you might notice that the current layout could use some adjustment. The histograms appear cramped, and the KPI cards have too much space. In the next section, you'll learn how to configure the layout and better arrange the components.

4.4. Configure the layout

In this section, you'll customize the Grid layout to control the placement and size of components on the page.

The following layout configuration is divided into four columns and four rows. The numbers in the grid correspond to the index of the components in the components list.

  • The first KPI card (0) is positioned at the top, occupying the first cell in the first row.
  • The second KPI card (1) is positioned to the right of the first KPI card.
  • There are two empty cells to the right of the KPI cards (-1).
  • The Tabs component (2) is placed below the KPI cards, spanning all cells across the remaining three rows.
grid = [[0, 1,-1,-1],
        [2, 2, 2, 2],
        [2, 2, 2, 2],
        [2, 2, 2, 2]]

Run the code below to apply the layout to the dashboard page:

Code - Layout

layout = vm.Grid(
    grid=[[0, 1, -1, -1],
          [2, 2, 2, 2],
          [2, 2, 2, 2],
          [2, 2, 2, 2]]
)

import vizro.models as vm
import vizro.plotly.express as px
from vizro import Vizro
from vizro.tables import dash_ag_grid
from vizro.models.types import capture
from vizro.figures import kpi_card
import vizro.actions as va

tips = px.data.tips()

first_page = vm.Page(
    title="Data",
    components=[
        vm.AgGrid(
            figure=dash_ag_grid(tips),
            footer="""**Data Source:** Bryant, P. G. and Smith, M (1995)
            Practical Data Analysis: Case Studies in Business Statistics.
            Homewood, IL: Richard D. Irwin Publishing.""",
        ),
        vm.Button(text="Export Data", actions=va.export_data()),
    ],
)

second_page = vm.Page(
    title="Summary",
    layout=vm.Grid(grid=[[0, 1, -1, -1], [2, 2, 2, 2], [2, 2, 2, 2], [2, 2, 2, 2]]),
    components=[
        vm.Figure(
            figure=kpi_card(
                data_frame=tips,
                value_column="total_bill",
                agg_func="mean",
                value_format="${value:.2f}",
                title="Average Bill",
            )
        ),
        vm.Figure(
            figure=kpi_card(
                data_frame=tips,
                value_column="tip",
                agg_func="mean",
                value_format="${value:.2f}",
                title="Average Tips"
            )
        ),
        vm.Tabs(
            tabs=[
                vm.Container(
                    title="Total Bill ($)",
                    components=[
                        vm.Graph(figure=px.histogram(tips, x="total_bill")),
                    ],
                ),
                vm.Container(
                    title="Total Tips ($)",
                    components=[
                        vm.Graph(figure=px.histogram(tips, x="tip")),
                    ],
                ),
            ],
        )
    ],
)

dashboard = vm.Dashboard(pages=[first_page, second_page])
Vizro().build(dashboard).run()

Run and edit this code in Py.Cafe

SecondPage4

Much better, don't you think? The layout now provides sufficient space for the charts!

4.5. Add a filter

You can use filters to interact with the dashboard by selecting specific data points to display.

These steps add a filter to the dashboard:

  1. Add a Filter model to the controls list of the Page.
  2. Specify the column to be filtered using the column argument of the Filter model.
  3. Change the selector in one of the Filters to a Checklist. For further customization, refer to the guide on How to use selectors.

Add a filter

controls = [vm.Filter(column="day"), vm.Filter(column="time", selector=vm.Checklist()), vm.Filter(column="size")]

import vizro.models as vm
import vizro.plotly.express as px
from vizro import Vizro
from vizro.tables import dash_ag_grid
from vizro.models.types import capture
from vizro.figures import kpi_card
import vizro.actions as va

tips = px.data.tips()

first_page = vm.Page(
    title="Data",
    components=[
        vm.AgGrid(
            figure=dash_ag_grid(tips),
            footer="""**Data Source:** Bryant, P. G. and Smith, M (1995)
            Practical Data Analysis: Case Studies in Business Statistics.
            Homewood, IL: Richard D. Irwin Publishing.""",
        ),
        vm.Button(text="Export Data", actions=va.export_data()),
    ],
)

second_page = vm.Page(
    title="Summary",
    layout=vm.Grid(grid=[[0, 1, -1, -1], [2, 2, 2, 2], [2, 2, 2, 2], [2, 2, 2, 2]]),
    components=[
        vm.Figure(
            figure=kpi_card(
                data_frame=tips,
                value_column="total_bill",
                agg_func="mean",
                value_format="${value:.2f}",
                title="Average Bill",
            )
        ),
        vm.Figure(
            figure=kpi_card(
                data_frame=tips,
                value_column="tip",
                agg_func="mean",
                value_format="${value:.2f}",
                title="Average Tips"
            )
        ),
        vm.Tabs(
            tabs=[
                vm.Container(
                    title="Total Bill ($)",
                    components=[
                        vm.Graph(figure=px.histogram(tips, x="total_bill")),
                    ],
                ),
                vm.Container(
                    title="Total Tips ($)",
                    components=[
                        vm.Graph(figure=px.histogram(tips, x="tip")),
                    ],
                ),
            ],
        )
    ],
    controls = [vm.Filter(column="day"), vm.Filter(column="time", selector=vm.Checklist()), vm.Filter(column="size")]
)

dashboard = vm.Dashboard(pages=[first_page, second_page])
Vizro().build(dashboard).run()

Run and edit this code in Py.Cafe

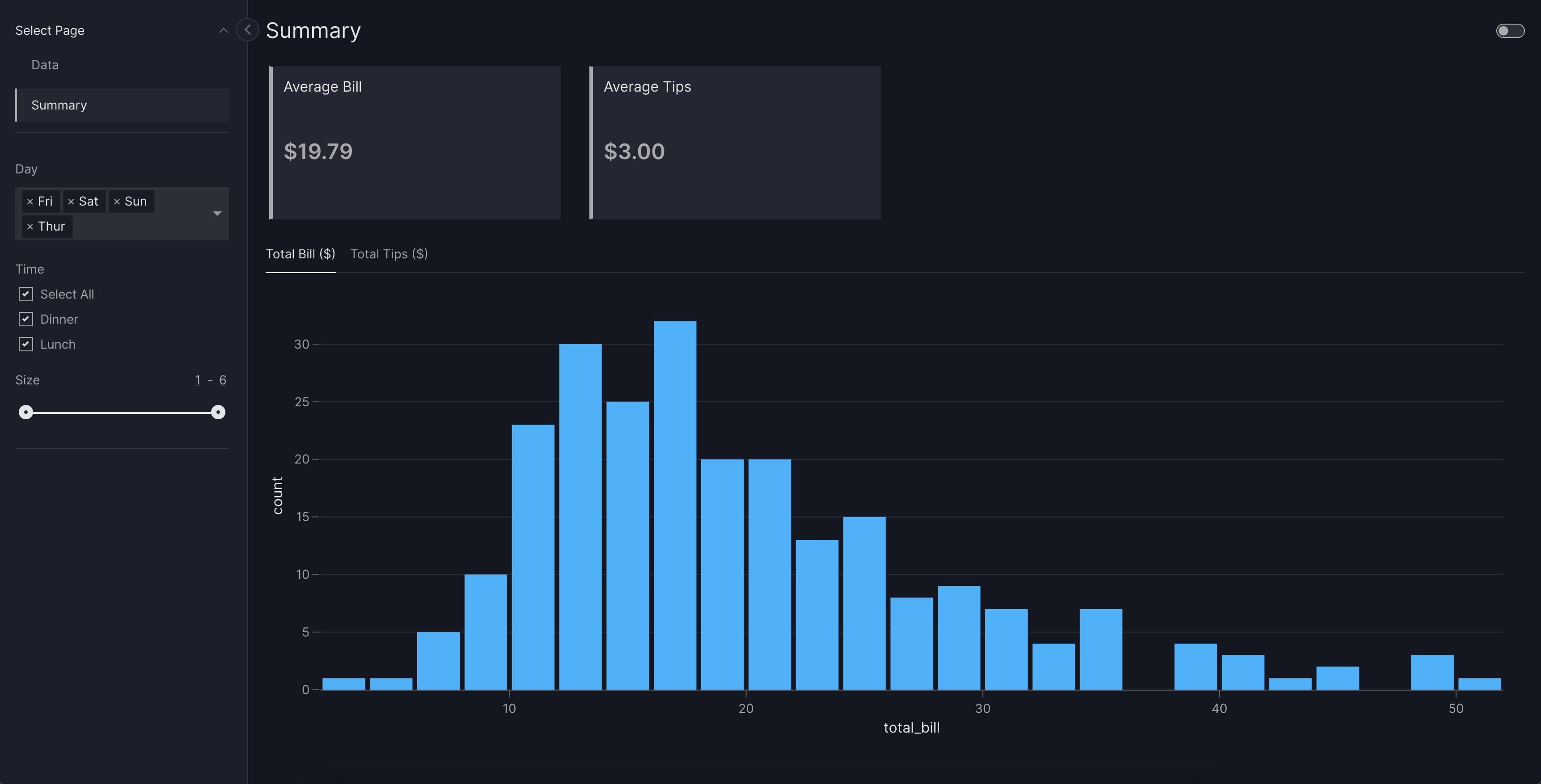

SecondPage5

You'll see that a Dropdown is selected by default for categorical data, while a RangeSlider is used for numerical data. Also, filters are applied to all components on the page.

If you want to apply a filter to specific components only, check out How to use filters.

Great work! You've just made a second dashboard page and learned how to:

  1. Add a chart to a page using the visual vocabulary
  2. Add KPI cards to display summary statistics
  3. Add tabs to switch views
  4. Arrange components by customizing the layout
  5. Add a filter to interact with the dashboard

5. Create a third page

Now that you've learned how to create pages, add components, and configure layouts, you'll create a third page for the dashboard. This will give you the opportunity to practice your skills alongside learning some new concepts!

This page takes inspiration from the Vizro visual vocabulary. It will feature:

5.1. Add multiple charts

These steps should feel familiar, as they add three charts to the new page.

  1. Create a third Page and store it in a variable called third_page. Set its title to "Analysis".
  2. Add three Graph models to the components of the Page.
  3. For each Graph, use the figure argument to provide one of the Plotly express functions:
  4. Provide a title for each Graph.
  5. Add the new Page to the list of pages in the Dashboard model.

Third page

third_page = vm.Page(
    title="Analysis",
    components=[
        vm.Graph(
            title="Where do we get more tips?",
            figure=px.bar(tips, y="tip", x="day"),
        ),
        vm.Graph(
            title="Is the average driven by a few outliers?",
            figure=px.violin(tips, y="tip", x="day", color="day", box=True),
        ),
        vm.Graph(
            title="Which group size is more profitable?",
            figure=px.density_heatmap(tips, x="day", y="size", z="tip", histfunc="avg", text_auto="$.2f"),
        ),
    ],
)

dashboard = vm.Dashboard(pages=[first_page, second_page, third_page])

import vizro.models as vm
import vizro.plotly.express as px
from vizro import Vizro
from vizro.tables import dash_ag_grid
from vizro.models.types import capture
from vizro.figures import kpi_card
import vizro.actions as va

tips = px.data.tips()

first_page = vm.Page(
    title="Data",
    components=[
        vm.AgGrid(
            figure=dash_ag_grid(tips),
            footer="""**Data Source:** Bryant, P. G. and Smith, M. (1995)
            Practical Data Analysis: Case Studies in Business Statistics.
            Homewood, IL: Richard D. Irwin Publishing.""",
        ),
        vm.Button(text="Export Data", actions=va.export_data()),
    ],
)

second_page = vm.Page(
    title="Summary",
    layout=vm.Grid(grid=[[0, 1, -1, -1], [2, 2, 2, 2], [2, 2, 2, 2], [2, 2, 2, 2]]),
    components=[
        vm.Figure(
            figure=kpi_card(
                data_frame=tips,
                value_column="total_bill",
                agg_func="mean",
                value_format="${value:.2f}",
                title="Average Bill",
            )
        ),
        vm.Figure(
            figure=kpi_card(
                data_frame=tips,
                value_column="tip",
                agg_func="mean",
                value_format="${value:.2f}",
                title="Average Tips",
            )
        ),
        vm.Tabs(
            tabs=[
                vm.Container(
                    title="Total Bill ($)",
                    components=[
                        vm.Graph(figure=px.histogram(tips, x="total_bill")),
                    ],
                ),
                vm.Container(
                    title="Total Tips ($)",
                    components=[
                        vm.Graph(figure=px.histogram(tips, x="tip")),
                    ],
                ),
            ],
        ),
    ],
    controls=[
        vm.Filter(column="day"),
        vm.Filter(column="time", selector=vm.Checklist()),
        vm.Filter(column="size"),
    ],
)

third_page = vm.Page(
    title="Analysis",
    components=[
        vm.Graph(
            title="Where do we get more tips?",
            figure=px.bar(tips, y="tip", x="day"),
        ),
        vm.Graph(
            title="Is the average driven by a few outliers?",
            figure=px.violin(tips, y="tip", x="day", color="day", box=True),
        ),
        vm.Graph(
            title="Which group size is more profitable?",
            figure=px.density_heatmap(tips, x="day", y="size", z="tip", histfunc="avg", text_auto="$.2f"),
        ),
    ],
)

dashboard = vm.Dashboard(pages=[first_page, second_page, third_page])
Vizro().build(dashboard).run()

Run and edit this code in Py.Cafe

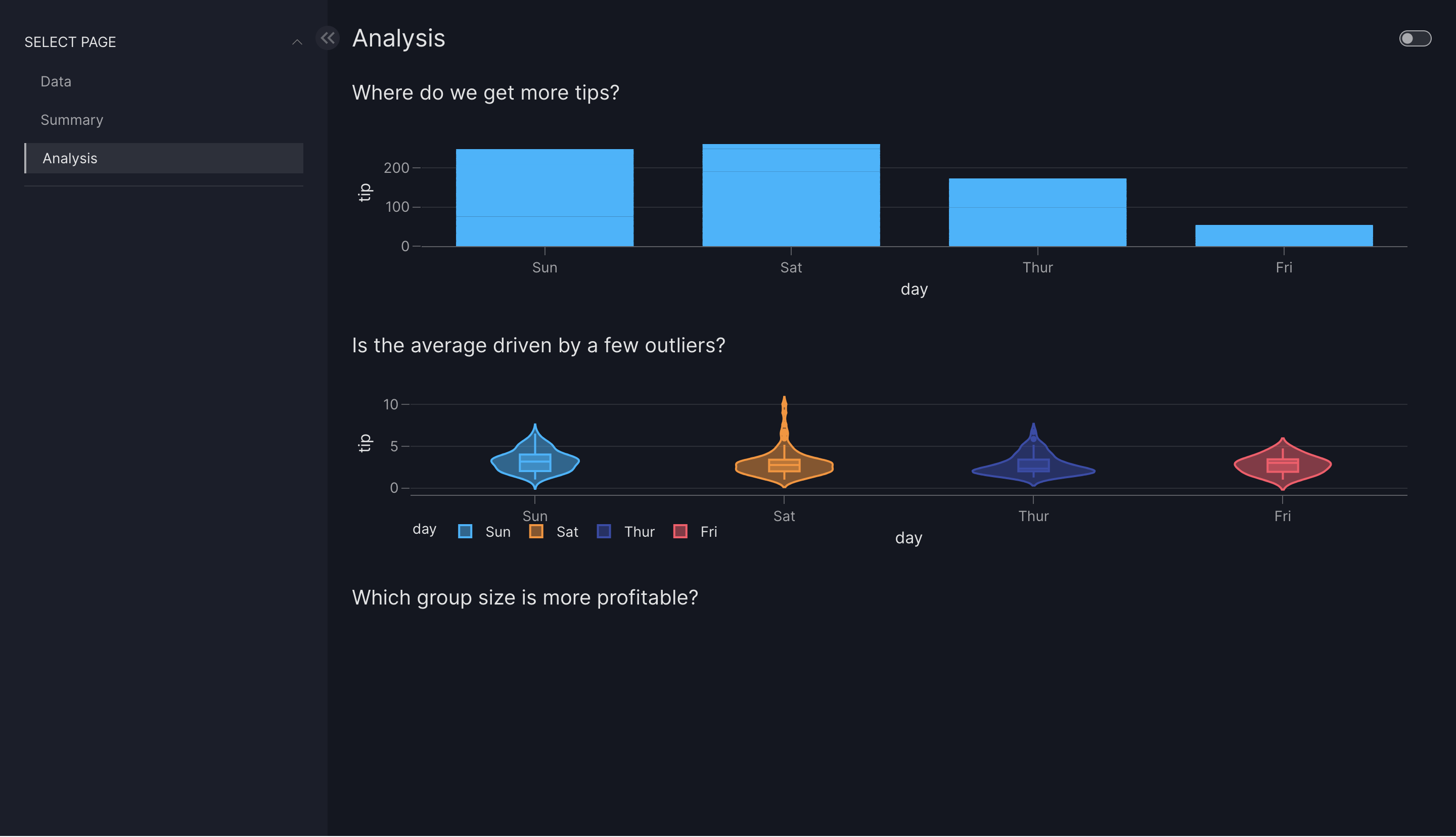

ThirdPage

Depending on your screen size, you may notice that the third chart is not visible. This issue can occur with Plotly charts when there isn't enough space to display them properly. Let's revise the layout to allocate more space for the heatmap.

5.2. Configure the layout

This step should also feel familiar by now. In the following new layout configuration, divide layout into two columns and two rows:

  • The bar chart (0) and violin chart (1) are placed side by side in the first row.
  • The heatmap (2) spans the entire second row.

Remember, the index corresponds to the order in which the components are added to the components of the Page.

grid = [[0, 1],
        [2, 2]]

Run the code below to apply the layout to the dashboard page:

Code - Layout

layout=vm.Grid(grid=[[0, 1], [2, 2]]),

import vizro.models as vm
import vizro.plotly.express as px
from vizro import Vizro
from vizro.tables import dash_ag_grid
from vizro.models.types import capture
from vizro.figures import kpi_card
import vizro.actions as va

tips = px.data.tips()

first_page = vm.Page(
    title="Data",
    components=[
        vm.AgGrid(
            figure=dash_ag_grid(tips),
            footer="""**Data Source:** Bryant, P. G. and Smith, M (1995)
            Practical Data Analysis: Case Studies in Business Statistics.
            Homewood, IL: Richard D. Irwin Publishing.""",
        ),
        vm.Button(text="Export Data", actions=va.export_data()),
    ],
)

second_page = vm.Page(
    title="Summary",
    layout=vm.Grid(grid=[[0, 1, -1, -1], [2, 2, 2, 2], [2, 2, 2, 2], [2, 2, 2, 2]]),
    components=[
        vm.Figure(
            figure=kpi_card(
                data_frame=tips,
                value_column="total_bill",
                agg_func="mean",
                value_format="${value:.2f}",
                title="Average Bill",
            )
        ),
        vm.Figure(
            figure=kpi_card(
                data_frame=tips,
                value_column="tip",
                agg_func="mean",
                value_format="${value:.2f}",
                title="Average Tips"
            )
        ),
        vm.Tabs(
            tabs=[
                vm.Container(
                    title="Total Bill ($)",
                    components=[
                        vm.Graph(figure=px.histogram(tips, x="total_bill")),
                    ],
                ),
                vm.Container(
                    title="Total Tips ($)",
                    components=[
                        vm.Graph(figure=px.histogram(tips, x="tip")),
                    ],
                ),
            ],
        )
    ],
    controls=[vm.Filter(column="day"), vm.Filter(column="time", selector=vm.Checklist()), vm.Filter(column="size")]
)

third_page = vm.Page(
    title="Analysis",
    layout=vm.Grid(grid=[[0, 1], [2, 2]]),
    components=[
        vm.Graph(
            title="Where do we get more tips?",
            figure=px.bar(tips, y="tip", x="day"),
        ),
        vm.Graph(
            title="Is the average driven by a few outliers?",
            figure=px.violin(tips, y="tip", x="day", color="day", box=True),
        ),
        vm.Graph(
            title="Which group size is more profitable?",
            figure=px.density_heatmap(tips, x="day", y="size", z="tip", histfunc="avg", text_auto="$.2f"),
        ),
    ],
)

dashboard = vm.Dashboard(pages=[first_page, second_page, third_page])
Vizro().build(dashboard).run()

Run and edit this code in Py.Cafe

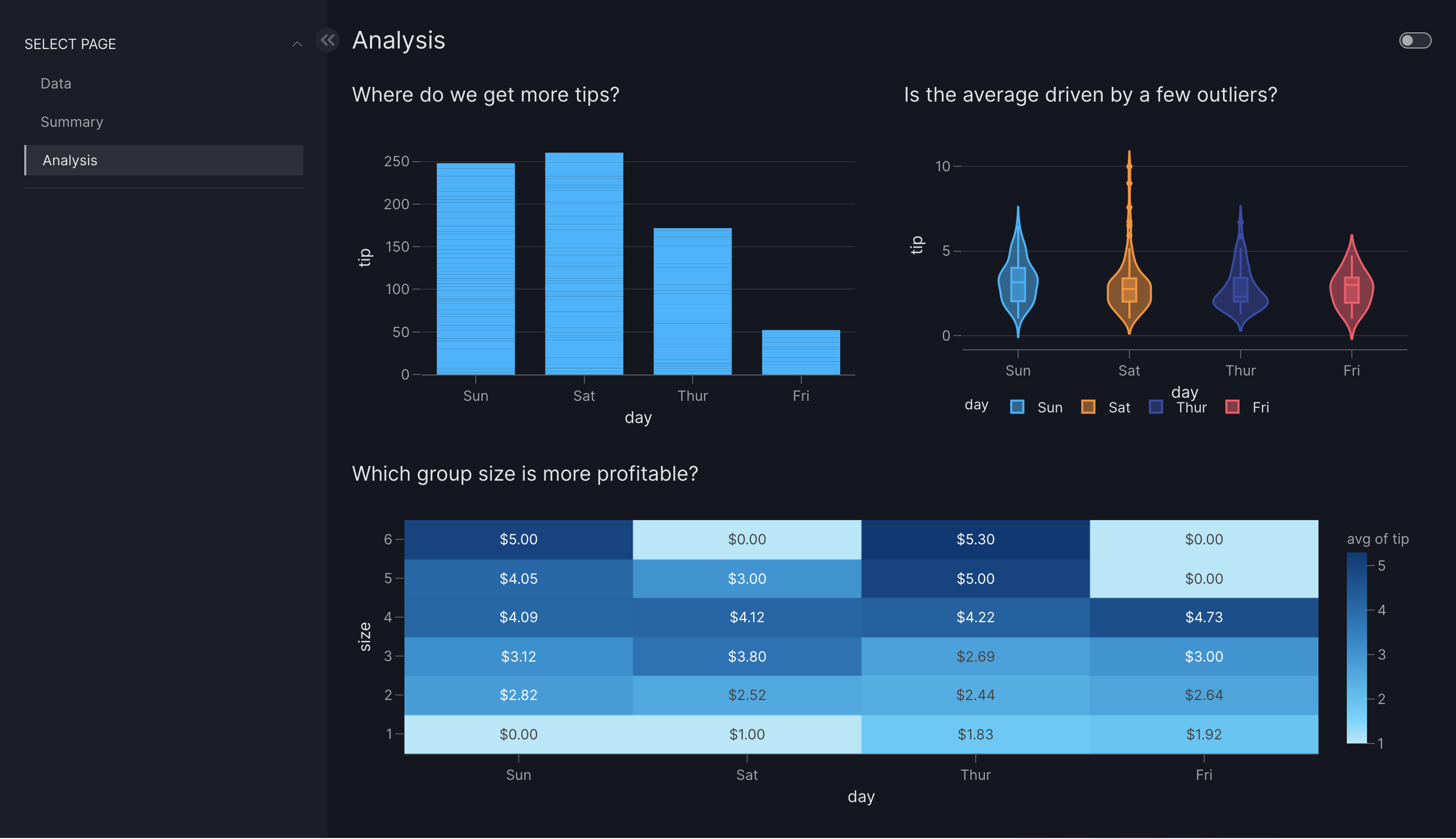

ThirdPage2

Fantastic work! The heatmap looks great, doesn't it?

5.3. Add a parameter

This section explains how you make the dashboard more interactive for the user by adding a parameter to dynamically change a component's argument.

In this section, you learn how to switch the x and color arguments across all charts, enabling data analysis from different perspectives.

These steps add a parameter to the dashboard:

  1. Add a Parameter to the controls of the Page.
  2. Assign an id to each Graph that the Parameter should target.
  3. Define the parameter's targets using the format component-id.argument.
  4. Set the selector of the Parameter to a RadioItems.
  5. Provide options for the RadioItems selector.

Add a parameter

controls=[
    vm.Parameter(
        targets=["violin.x", "violin.color", "heatmap.x", "bar.x"],
        selector=vm.RadioItems(
            options=["day", "time", "sex", "smoker", "size"], value="day", title="Change x-axis inside charts:"
        ),
    ),
]

import vizro.models as vm
import vizro.plotly.express as px
from vizro import Vizro
from vizro.tables import dash_ag_grid
from vizro.models.types import capture
from vizro.figures import kpi_card
import vizro.actions as va

tips = px.data.tips()

first_page = vm.Page(
    title="Data",
    components=[
        vm.AgGrid(
            figure=dash_ag_grid(tips),
            footer="""**Data Source:** Bryant, P. G. and Smith, M (1995)
            Practical Data Analysis: Case Studies in Business Statistics.
            Homewood, IL: Richard D. Irwin Publishing.""",
        ),
        vm.Button(text="Export Data", actions=va.export_data()),
    ],
)

second_page = vm.Page(
    title="Summary",
    layout=vm.Grid(grid=[[0, 1, -1, -1], [2, 2, 2, 2], [2, 2, 2, 2], [2, 2, 2, 2]]),
    components=[
        vm.Figure(
            figure=kpi_card(
                data_frame=tips,
                value_column="total_bill",
                agg_func="mean",
                value_format="${value:.2f}",
                title="Average Bill",
            )
        ),
        vm.Figure(
            figure=kpi_card(
                data_frame=tips,
                value_column="tip",
                agg_func="mean",
                value_format="${value:.2f}",
                title="Average Tips"
            )
        ),
        vm.Tabs(
            tabs=[
                vm.Container(
                    title="Total Bill ($)",
                    components=[
                        vm.Graph(figure=px.histogram(tips, x="total_bill")),
                    ],
                ),
                vm.Container(
                    title="Total Tips ($)",
                    components=[
                        vm.Graph(figure=px.histogram(tips, x="tip")),
                    ],
                ),
            ],
        )
    ],
    controls=[vm.Filter(column="day"), vm.Filter(column="time", selector=vm.Checklist()), vm.Filter(column="size")]
)

third_page = vm.Page(
    title="Analysis",
    layout=vm.Grid(grid=[[0, 1], [2, 2]]),
    components=[
        vm.Graph(
            id="bar",
            title="Where do we get more tips?",
            figure=px.bar(tips, y="tip", x="day"),
        ),
        vm.Graph(
            id="violin",
            title="Is the average driven by a few outliers?",
            figure=px.violin(tips, y="tip", x="day", color="day", box=True),
        ),
        vm.Graph(
            id="heatmap",
            title="Which group size is more profitable?",
            figure=px.density_heatmap(tips, x="day", y="size", z="tip", histfunc="avg", text_auto="$.2f"),
        ),
    ],
    controls=[
        vm.Parameter(
            targets=["violin.x", "violin.color", "heatmap.x", "bar.x"],
            selector=vm.RadioItems(
                options=["day", "time", "sex", "smoker", "size"], value="day", title="Change x-axis inside charts:"
            ),
        ),
    ],
)

dashboard = vm.Dashboard(pages=[first_page, second_page, third_page])
Vizro().build(dashboard).run()

Run and edit this code in Py.Cafe

ThirdPage3

Take a moment to interact with the parameter. Notice how the x-axis of all charts updates dynamically based on your selection.

Isn't it amazing how effortlessly it is to shift the data analysis perspective now?

5.4. Add a custom chart

You may notice that the bar chart has many inner lines. This happens because each line represents a unique data point when an unaggregated dataset is provided to px.bar. To avoid this, you can aggregate the data before plotting. However, the aggregation needs to be dynamic, based on the parameter you added in the previous step. The following steps create a custom chart:

  1. Create a function that takes the data_frame as input and returns a Plotly figure.
  2. Decorate the function with the @capture(graph) decorator.
  3. Inside the function, aggregate the data, provide a label for the chart, and update the bar width.
  4. Use this custom function in the Graph component instead of px.bar.

For more information on when to create a custom chart, check out How to create custom charts.

Add custom chart

@capture("graph")
def bar_mean(data_frame, x, y):
    df_agg = data_frame.groupby(x).agg({y: "mean"}).reset_index()
    fig = px.bar(df_agg, x=x, y=y, labels={"tip": "Average Tip ($)"})
    fig.update_traces(width=0.6)
    return fig

import vizro.models as vm
import vizro.plotly.express as px
from vizro import Vizro
from vizro.tables import dash_ag_grid
from vizro.models.types import capture
from vizro.figures import kpi_card
import vizro.actions as va

tips = px.data.tips()


@capture("graph")
def bar_mean(data_frame, x, y):
    df_agg = data_frame.groupby(x).agg({y: "mean"}).reset_index()
    fig = px.bar(df_agg, x=x, y=y, labels={"tip": "Average Tip ($)"})
    fig.update_traces(width=0.6)
    return fig


first_page = vm.Page(
    title="Data",
    components=[
        vm.AgGrid(
            figure=dash_ag_grid(tips),
            footer="""**Data Source:** Bryant, P. G. and Smith, M (1995)
            Practical Data Analysis: Case Studies in Business Statistics.
            Homewood, IL: Richard D. Irwin Publishing.""",
        ),
        vm.Button(text="Export Data", actions=va.export_data()),
    ],
)

second_page = vm.Page(
    title="Summary",
    layout=vm.Grid(grid=[[0, 1, -1, -1], [2, 2, 2, 2], [2, 2, 2, 2], [2, 2, 2, 2]]),
    components=[
        vm.Figure(
            figure=kpi_card(
                data_frame=tips,
                value_column="total_bill",
                agg_func="mean",
                value_format="${value:.2f}",
                title="Average Bill",
            )
        ),
        vm.Figure(
            figure=kpi_card(
                data_frame=tips,
                value_column="tip",
                agg_func="mean",
                value_format="${value:.2f}",
                title="Average Tips"
            )
        ),
        vm.Tabs(
            tabs=[
                vm.Container(
                    title="Total Bill ($)",
                    components=[
                        vm.Graph(figure=px.histogram(tips, x="total_bill")),
                    ],
                ),
                vm.Container(
                    title="Total Tips ($)",
                    components=[
                        vm.Graph(figure=px.histogram(tips, x="tip")),
                    ],
                ),
            ],
        )
    ],
    controls=[vm.Filter(column="day"), vm.Filter(column="time", selector=vm.Checklist()), vm.Filter(column="size")]
)

third_page = vm.Page(
    title="Analysis",
    layout=vm.Grid(grid=[[0, 1], [2, 2]]),
    components=[
        vm.Graph(
            id="bar",
            title="Where do we get more tips?",
            figure=bar_mean(tips, y="tip", x="day"),
        ),
        vm.Graph(
            id="violin",
            title="Is the average driven by a few outliers?",
            figure=px.violin(tips, y="tip", x="day", color="day", box=True),
        ),
        vm.Graph(
            id="heatmap",
            title="Which group size is more profitable?",
            figure=px.density_heatmap(tips, x="day", y="size", z="tip", histfunc="avg", text_auto="$.2f"),
        ),
    ],
    controls=[
        vm.Parameter(
            targets=["violin.x", "violin.color", "heatmap.x", "bar.x"],
            selector=vm.RadioItems(
                options=["day", "time", "sex", "smoker", "size"], value="day", title="Change x-axis inside charts:"
            ),
        ),
    ],
)

dashboard = vm.Dashboard(pages=[first_page, second_page, third_page])
Vizro().build(dashboard).run()

Run and edit this code in Py.Cafe

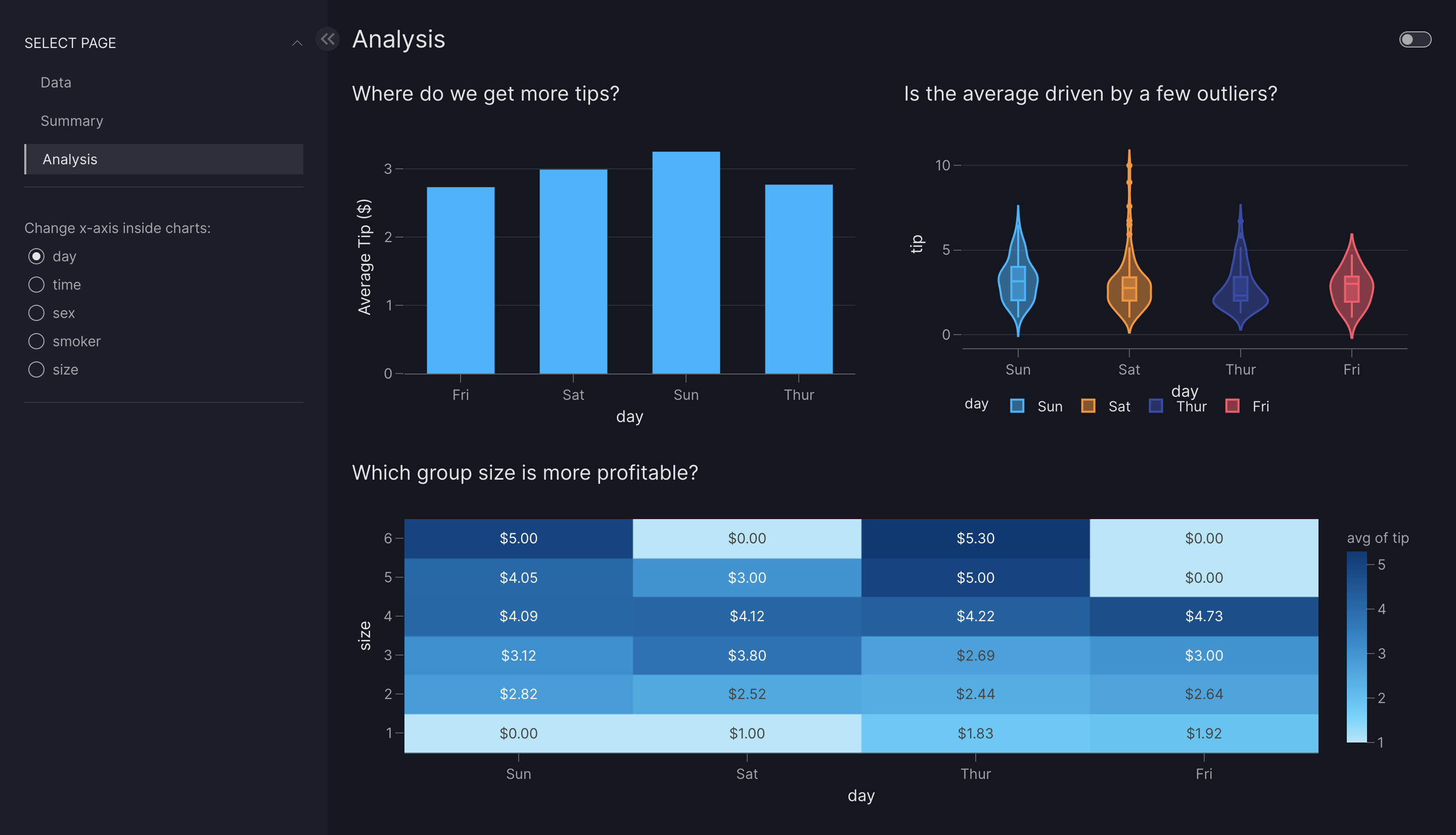

ThirdPage4

Fantastic job reaching this point!

You've just completed the final dashboard page and learned how to:

  1. Add multiple charts
  2. Customize a layout
  3. Add a parameter to interact with the charts
  4. Add a custom chart to the dashboard

6. Finishing touches

Now that you've created all the dashboard pages, let's add a title and logo, and customize the navigation.

The following steps add a title and logo to the dashboard:

  1. Set the title attribute of the Dashboard model to "Tips Analysis Dashboard".
  2. Download the logo from this link and save it in a folder named assets.
  3. Place the assets folder in the same directory as your app.py/app.ipynb file.

Your directory structure should look like this:

Example folder structure
├── app.py
├── assets
│   ├── logo.svg

Add a dashboard title and logo

dashboard = vm.Dashboard(pages=[first_page, second_page, third_page], title="Tips Analysis Dashboard")

import vizro.models as vm
import vizro.plotly.express as px
from vizro import Vizro
from vizro.tables import dash_ag_grid
from vizro.models.types import capture
from vizro.figures import kpi_card
import vizro.actions as va

tips = px.data.tips()


@capture("graph")
def bar_mean(data_frame, x, y):
    df_agg = data_frame.groupby(x).agg({y: "mean"}).reset_index()
    fig = px.bar(df_agg, x=x, y=y, labels={"tip": "Average Tip ($)"})
    fig.update_traces(width=0.6)
    return fig


first_page = vm.Page(
    title="Data",
    components=[
        vm.AgGrid(
            figure=dash_ag_grid(tips),
            footer="""**Data Source:** Bryant, P. G. and Smith, M (1995)
            Practical Data Analysis: Case Studies in Business Statistics.
            Homewood, IL: Richard D. Irwin Publishing.""",
        ),
        vm.Button(text="Export Data", actions=va.export_data()),
    ],
)

second_page = vm.Page(
    title="Summary",
    layout=vm.Grid(grid=[[0, 1, -1, -1], [2, 2, 2, 2], [2, 2, 2, 2], [2, 2, 2, 2]]),
    components=[
        vm.Figure(
            figure=kpi_card(
                data_frame=tips,
                value_column="total_bill",
                agg_func="mean",
                value_format="${value:.2f}",
                title="Average Bill",
            )
        ),
        vm.Figure(
            figure=kpi_card(
                data_frame=tips,
                value_column="tip",
                agg_func="mean",
                value_format="${value:.2f}",
                title="Average Tips"
            )
        ),
        vm.Tabs(
            tabs=[
                vm.Container(
                    title="Total Bill ($)",
                    components=[
                        vm.Graph(figure=px.histogram(tips, x="total_bill")),
                    ],
                ),
                vm.Container(
                    title="Total Tips ($)",
                    components=[
                        vm.Graph(figure=px.histogram(tips, x="tip")),
                    ],
                ),
            ],
        )
    ],
    controls=[vm.Filter(column="day"), vm.Filter(column="time", selector=vm.Checklist()), vm.Filter(column="size")]
)

third_page = vm.Page(
    title="Analysis",
    layout=vm.Grid(grid=[[0, 1], [2, 2]]),
    components=[
        vm.Graph(
            id="bar",
            title="Where do we get more tips?",
            figure=bar_mean(tips, y="tip", x="day"),
        ),
        vm.Graph(
            id="violin",
            title="Is the average driven by a few outliers?",
            figure=px.violin(tips, y="tip", x="day", color="day", box=True),
        ),
        vm.Graph(
            id="heatmap",
            title="Which group size is more profitable?",
            figure=px.density_heatmap(tips, x="day", y="size", z="tip", histfunc="avg", text_auto="$.2f"),
        ),
    ],
    controls=[
        vm.Parameter(
            targets=["violin.x", "violin.color", "heatmap.x", "bar.x"],
            selector=vm.RadioItems(
                options=["day", "time", "sex", "smoker", "size"], value="day", title="Change x-axis inside charts:"
            ),
        ),
    ],
)

dashboard = vm.Dashboard(pages=[first_page, second_page, third_page], title="Tips Analysis Dashboard")
Vizro().build(dashboard).run()

Run and edit this code in Py.Cafe

Dashboard

You should see the logo in the top-left corner of your dashboard header, with the title displayed next to it. If you can't see the logo, make sure the image is called logo and is stored in the assets folder. For more details on supported image formats, refer to the guide on how to add a logo.

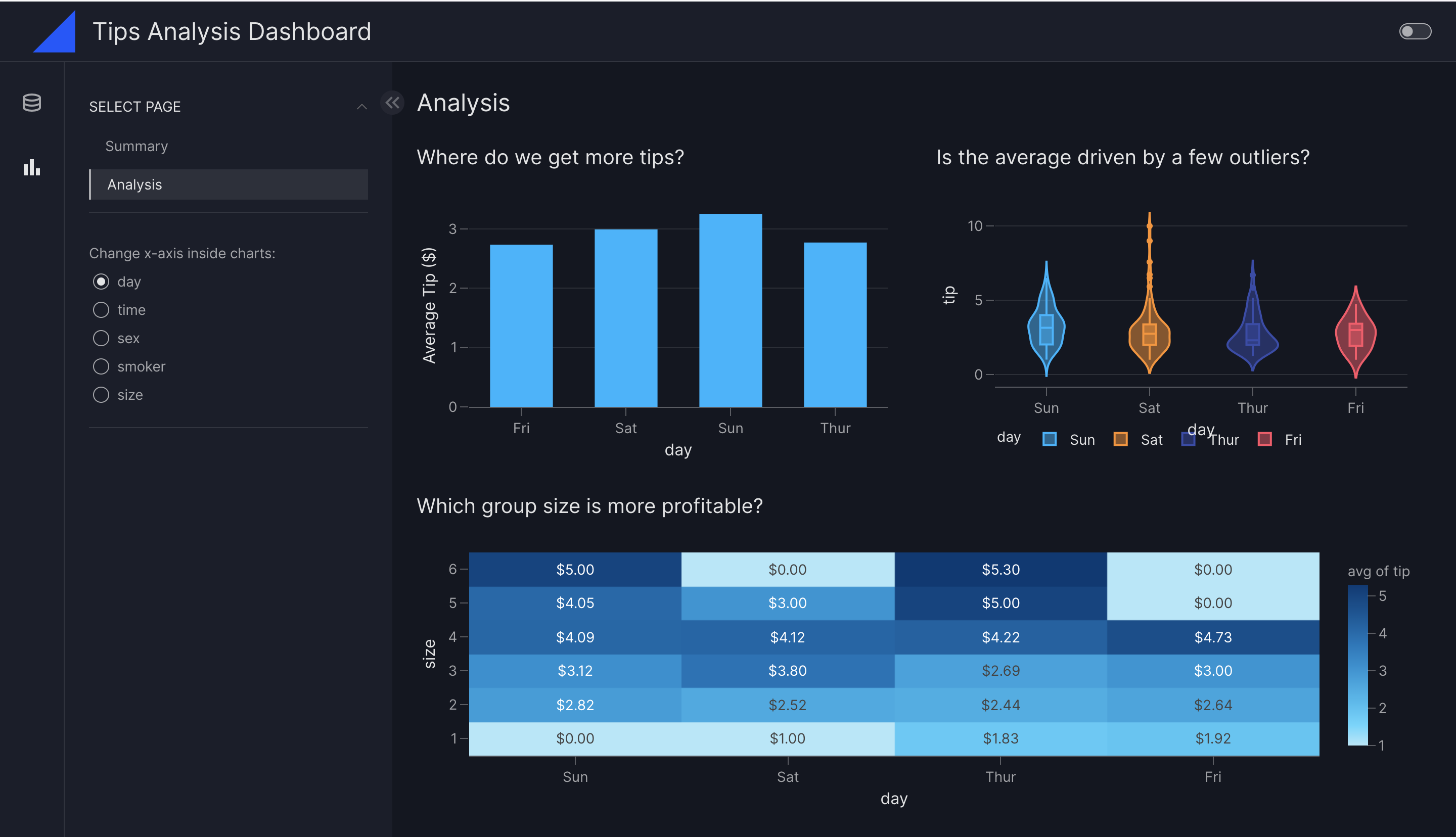

6.2. Customize the navigation

By default, a navigation panel on the left side enables users to switch between the pages. In this section, you'll learn how to customize it by using a navigation bar with icons instead.

The navigation bar will have two icons: one for the "Data" page and another for the "Summary" and "Analysis" pages.

The following steps create a navigation bar:

  1. Set the navigation attribute of the Dashboard model to a Navigation object.
  2. Assign a NavBar object to the nav_selector attribute of the Navigation.
  3. Populate the items of the NavBar object with a list of NavLink objects.
  4. Customize each NavLink object by setting its label, pages, and icon attributes.
    • The label controls the text displayed in the tooltip when hovering over the navigation icon.
    • The pages controls the pages included in the accordion navigation for that icon.
    • The icon sets the icon to display using the Material Design Icons library.

Customize navigation

navigation=vm.Navigation(
    nav_selector=vm.NavBar(
        items=[
            vm.NavLink(label="Data", pages=["Data"], icon="Database"),
            vm.NavLink(label="Charts", pages=["Summary", "Analysis"], icon="Bar Chart"),
        ]
    )
)

import vizro.models as vm
import vizro.plotly.express as px
from vizro import Vizro
from vizro.tables import dash_ag_grid
from vizro.models.types import capture
from vizro.figures import kpi_card
import vizro.actions as va

tips = px.data.tips()


@capture("graph")
def bar_mean(data_frame, x, y):
    df_agg = data_frame.groupby(x).agg({y: "mean"}).reset_index()
    fig = px.bar(df_agg, x=x, y=y, labels={"tip": "Average Tip ($)"})
    fig.update_traces(width=0.6)
    return fig


first_page = vm.Page(
    title="Data",
    components=[
        vm.AgGrid(
            figure=dash_ag_grid(tips),
            footer="""**Data Source:** Bryant, P. G. and Smith, M (1995)
            Practical Data Analysis: Case Studies in Business Statistics.
            Homewood, IL: Richard D. Irwin Publishing.""",
        ),
        vm.Button(text="Export Data", actions=va.export_data()),
    ],
)

second_page = vm.Page(
    title="Summary",
    layout=vm.Grid(grid=[[0, 1, -1, -1], [2, 2, 2, 2], [2, 2, 2, 2], [2, 2, 2, 2]]),
    components=[
        vm.Figure(
            figure=kpi_card(
                data_frame=tips,
                value_column="total_bill",
                agg_func="mean",
                value_format="${value:.2f}",
                title="Average Bill",
            )
        ),
        vm.Figure(
            figure=kpi_card(
                data_frame=tips,
                value_column="tip",
                agg_func="mean",
                value_format="${value:.2f}",
                title="Average Tips"
            )
        ),
        vm.Tabs(
            tabs=[
                vm.Container(
                    title="Total Bill ($)",
                    components=[
                        vm.Graph(figure=px.histogram(tips, x="total_bill")),
                    ],
                ),
                vm.Container(
                    title="Total Tips ($)",
                    components=[
                        vm.Graph(figure=px.histogram(tips, x="tip")),
                    ],
                ),
            ],
        )
    ],
    controls=[vm.Filter(column="day"), vm.Filter(column="time", selector=vm.Checklist()), vm.Filter(column="size")]
)

third_page = vm.Page(
    title="Analysis",
    layout=vm.Grid(grid=[[0, 1], [2, 2]]),
    components=[
        vm.Graph(
            id="bar",
            title="Where do we get more tips?",
            figure=bar_mean(tips, y="tip", x="day"),
        ),
        vm.Graph(
            id="violin",
            title="Is the average driven by a few outliers?",
            figure=px.violin(tips, y="tip", x="day", color="day", box=True),
        ),
        vm.Graph(
            id="heatmap",
            title="Which group size is more profitable?",
            figure=px.density_heatmap(tips, x="day", y="size", z="tip", histfunc="avg", text_auto="$.2f"),
        ),
    ],
    controls=[
        vm.Parameter(
            targets=["violin.x", "violin.color", "heatmap.x", "bar.x"],
            selector=vm.RadioItems(
                options=["day", "time", "sex", "smoker", "size"], value="day", title="Change x-axis inside charts:"
            ),
        ),
    ],
)

dashboard = vm.Dashboard(
    pages=[first_page, second_page, third_page],
    title="Tips Analysis Dashboard",
    navigation=vm.Navigation(
        nav_selector=vm.NavBar(
            items=[
                vm.NavLink(label="Data", pages=["Data"], icon="Database"),
                vm.NavLink(label="Charts", pages=["Summary", "Analysis"], icon="Bar Chart"),
            ]
        )
    ),
)
Vizro().build(dashboard).run()

Run and edit this code in Py.Cafe

DashboardFinal

Take a moment to explore the navigation bar! Hover over the icons to view the tooltip text, and click on them to navigate between the pages.

Congratulations on completing this tutorial!

You now have the skills to configure layouts, and add components and interactivity to Vizro dashboards across multiple navigable pages.

7. Find out more

After completing the tutorial, you have a solid understanding of the main elements of Vizro and how to bring them together to create dynamic and interactive data visualizations.

You can find out more about Vizro's components by reading the components overview page. To gain more in-depth knowledge about the usage and configuration details of individual controls, check out the guides dedicated to Filters, Parameters, and Selectors.

If you'd like to understand more about different ways to configure the navigation of your dashboard, head to Navigation.

Vizro doesn't end here; we've only covered the key features, but there's still much more to explore! You can learn:
