How to use actions

Actions control how your app responds to user input such as clicking a button or a point on a graph. If an action is not built into Vizro then you can write your own custom action. In these guides we show how to use built-in actions across a range of areas:

A complete list of built-in actions in given in the API documentation. We also have an in-depth tutorial on writing your own action and an explanation of how Vizro actions work.

Note

Do you have an idea for a built-in action? Submit a feature request!

General principles

Many Vizro models have an actions argument that can contain one or more actions. Each action is a Python function that is triggered by a user interaction.

To use an action:

  1. add import vizro.actions as va to your imports
  2. call the relevant action in the actions argument of the model that triggers the action

You can also execute multiple actions with a single trigger.

Some actions are typically triggered by certain components, for example export_data is usually triggered by clicking a button. However, many actions can be triggered by any component, for example:

Note

Unlike custom actions, built-in actions do not use the Action model.

Trigger an action with a button

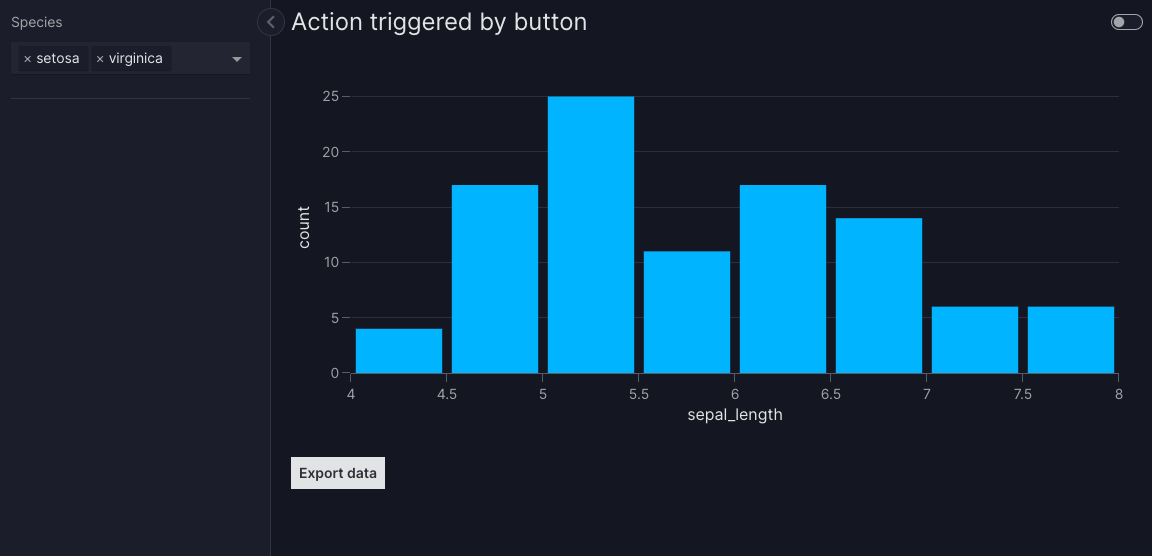

Here is an example action that uses the export_data action when a button is clicked.

Action triggered by button

import vizro.actions as va
import vizro.models as vm
import vizro.plotly.express as px
from vizro import Vizro

df = px.data.iris()

page = vm.Page(
    title="Action triggered by a button",
    components=[
        vm.Graph(figure=px.histogram(df, x="sepal_length")),
        vm.Button(text="Export data", actions=va.export_data()),
    ],
    controls=[vm.Filter(column="species")],
)

dashboard = vm.Dashboard(pages=[page])
Vizro().build(dashboard).run()

Run and edit this code in Py.Cafe

# Still requires a .py to add data to the data manager and parse YAML configuration
# See yaml_version example
pages:
  - components:
      - type: graph
        figure:
          _target_: histogram
          x: sepal_length
      - type: button
        text: Export data
        actions:
          - type: export_data
  - controls:
      - type: filter
        column: species
    layout:
      type: flex
    title: Action triggered by a button

ExportData

When you click the "Export data" button, the data for all graphs, tables and figures on the page is downloaded. In this example, this will produce a csv file for the graph's source data px.data.iris().

Tip

If you have many buttons that trigger actions then you might like to give them icons. You can even have icon-only buttons with no text.

Trigger an action with a graph

Here is an example that performs a cross-filter between a graph and a table. When you click on a box in the graph, the table is cross-filtered to show data for only one sex.

Cross-filter from graph to table

import vizro.actions as va
import vizro.models as vm
import vizro.plotly.express as px
from vizro import Vizro
from vizro.tables import dash_ag_grid

tips = px.data.tips()

page = vm.Page(
    title="Cross-filter from graph to table",
    components=[
        vm.Graph(
            title="Click on a box to use that box's sex to filter table",
            figure=px.box(tips, x="tip", y="sex"),
            actions=va.set_control(control="sex_filter", value="y"),
        ),
        vm.AgGrid(id="tips_table", figure=dash_ag_grid(tips)),  # (1)!
    ],
    controls=[vm.Filter(id="sex_filter", column="sex", targets=["tips_table"])],  # (2)!
)

dashboard = vm.Dashboard(pages=[page])
Vizro().build(dashboard).run()

Run and edit this code in Py.Cafe

  1. We give the vm.AgGrid an id so that it can be targeted explicitly by vm.Filter(id="sex_filter").
  2. We give the vm.Filter an id so that it can be set explicitly by va.set_control.
# Still requires a .py to add data to the data manager and parse YAML configuration
# See yaml_version example
pages:
  - components:
      - actions:
          - control: sex_filter
            type: set_control
            value: y
        figure:
          _target_: box
          data_frame: tips
          x: tip
          y: sex
        title: Click on a box to use that box's sex to filter table
        type: graph
      - figure:
          _target_: dash_ag_grid
          data_frame: tips
        id: tips_table
        type: ag_grid
    controls:
      - column: sex
        id: sex_filter
        targets:
          - tips_table
        type: filter
    title: Cross-filter from graph to table

Multiple actions

When you specify multiple actions as actions=[action_1, action_2, ...] then Vizro chains these actions in order, so that action_2 executes only when action_1 has completed. You can freely mix built-in actions and custom actions in an actions chain. For more details on how actions chains execute, see our tutorial on custom actions.

Here is an example actions chain that uses a custom action_function action and the built-in export_data action:

import vizro.actions as va
import vizro.models as vm

actions = [
    va.export_data(),
    vm.Action(
        function=action_function("input_id_1", "input_id_2"),
        outputs="output_id",
    ),
]
