How to create custom components

The number of built-in Vizro models is deliberately kept quite small to enable quick and easy configuration of a dashboard. However, Vizro is also extensible, so that you can modify any model or create an entirely new one. This guide shows you how to do so.

In general, you can create a custom component based on a Dash component from any Dash component library, for example:

General principles

Can you use extra instead of creating a custom component?

If you want to modify an existing component, you may not even need to create a custom component. Many of our models have an extra argument to pass arguments to the underlying Dash component directly, for example to make the RadioItem inline instead of stacked.

To create a custom component:

Subclass the relevant model:
- To extend an existing model such as RangeSlider, subclass it.
- To create a new component, subclass VizroBaseModel.
Write the subclass:
- To extend an existing model you could, for example, add or change model fields or override the build method.
- To create a new component, you need to define fields and the build method from scratch.
Look at the field where your component will be used in the API reference and check whether it is described as a discriminated union. For example, in the Filter model the selector field of type SelectorType is a discriminated union but the options field of type OptionsType is not. If the field is a discriminated union, then:
- You must ensure your model has a type field.
- You must register the new type with its parent model with add_type.

We will refer back to these steps in the examples below.

Extend an existing component

You may want to use this strategy to:

Extend an existing component, for example to add a button to a Card.
Change default configuration of a Dash component set by a Vizro model, for example to set allowCross=False in RangeSlider.
Change the fields of a models, for example to change the title field from Optional to have a default.

You can extend an existing component by subclassing the component you want to modify. Remember that when subclassing a component you have access to all fields of its parent model, but you can choose to overwrite any field or method or define entirely new ones.

In this example, we modify the RangeSlider model so that one slider handle cannot cross the other, and to have a permanent tooltip showing the current value. It is often easier to call super() and modify the result when overriding a complex method such as the build method instead of writing it from scratch.

In this case, the general three steps translate into:

Subclass RangeSlider:

import vizro.models as vm

class TooltipNonCrossRangeSlider(vm.RangeSlider):

Modify the component by changing the underlying parent's dcc.RangeSlider Dash component in the build method:

class TooltipNonCrossRangeSlider(vm.RangeSlider):
    def build(self):
        ...
        allowCross=False,
        tooltip={"placement": "bottom", "always_visible": True}

These lines are highlighted in the example below. They are the only material change to the original build method.

Since the new model will be inserted into the selectors argument of the Filter model or Parameter model, it will be part of the discriminated union describing the allowed types for that argument, in this case the SelectorType. Hence we must:
- define a new type:

class TooltipNonCrossRangeSlider(vm.RangeSlider):
    type: Literal["other_range_slider"] = "other_range_slider"
    ...

- register the type with the parent models:

vm.Filter.add_type("selector", TooltipNonCrossRangeSlider)
vm.Parameter.add_type("selector", TooltipNonCrossRangeSlider)

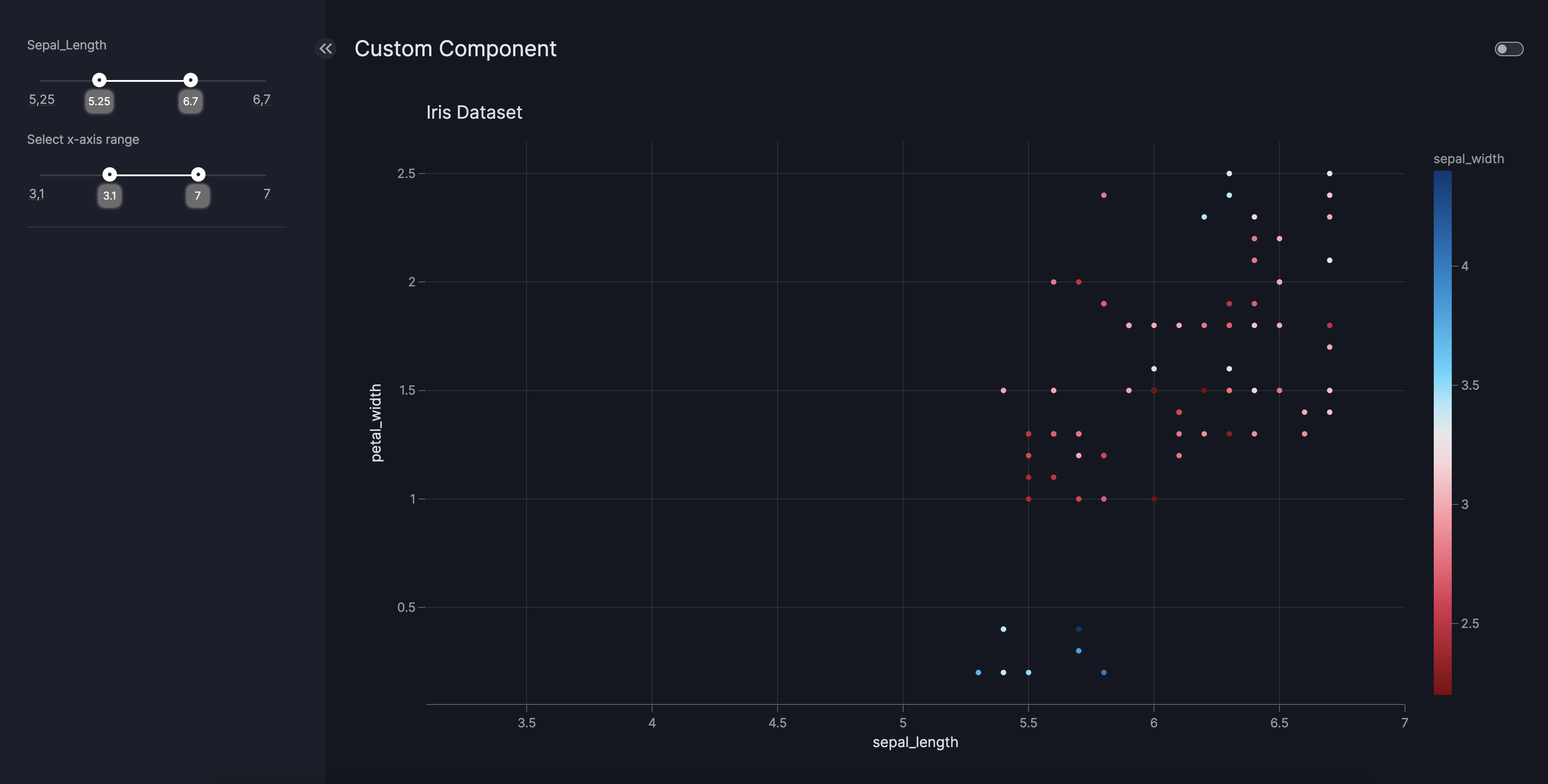

Example based on existing component

app.pyyamlResult

from typing_extensions import Literal

import vizro.models as vm
import vizro.plotly.express as px
from vizro import Vizro

iris = px.data.iris()


class TooltipNonCrossRangeSlider(vm.RangeSlider):
    """Custom numeric multi-selector `TooltipNonCrossRangeSlider`."""

    type: Literal["other_range_slider"] = "other_range_slider"  # (1)!

    def build(self):  # (2)!
        range_slider_build_obj = super().build()  # (3)!
        range_slider_build_obj[self.id].allowCross = False  # (4)!
        range_slider_build_obj[self.id].tooltip = {"always_visible": True, "placement": "bottom"}  # (5)!
        return range_slider_build_obj


vm.Filter.add_type("selector", TooltipNonCrossRangeSlider)  # (6)!
vm.Parameter.add_type("selector", TooltipNonCrossRangeSlider)  # (7)!

page = vm.Page(
    title="Custom Component",
    components=[
        vm.Graph(
            id="for_custom_chart",
            figure=px.scatter(iris, title="Iris Dataset", x="sepal_length", y="petal_width", color="sepal_width"),
        ),
    ],
    controls=[
        vm.Filter(
            column="sepal_length",
            targets=["for_custom_chart"],
            selector=TooltipNonCrossRangeSlider(),
        ),
        vm.Parameter(
            targets=["for_custom_chart.range_x"],
            selector=TooltipNonCrossRangeSlider(title="Select x-axis range", min=0, max=10),  # (8)!
        ),
    ],
)

dashboard = vm.Dashboard(pages=[page])

Vizro().build(dashboard).run()

Run and edit this code in Py.Cafe

Here we provide a new type for the new component, so it can be distinguished in the discriminated union.
Here we override the build method by altering the output of super().build(). Alternatively one could copy the source code of the build method and alter it directly.
range_slider_build_obj[self.id] then fetches the underlying dcc.RangeSlider object.
This change prevents the RangeSlider from crossing itself when moving the handle.
This change displays the tooltip below the handle.
Remember! If part of a discriminated union, you must add the new component to the parent model where it will be inserted. In this case the new TooltipNonCrossRangeSlider will be inserted into the selector argument of the Filter model, and thus must be added as an allowed type.
Remember! If part of a discriminated union, you must add the new component to the parent model where it will be inserted. In this case the new TooltipNonCrossRangeSlider will be inserted into the selector argument of the Parameter model, and thus must be added as an allowed type.
The new component can now be inserted into a regular dashboard.

# Custom components are currently only possible via Python configuration

Create a new component

You may want to use this strategy to:

Create a new component that does not exist as a built-ninVizro model.
Make extensive changes to an existing component.
Combine multiple components into a single higher-level component, similar to a Dash All-in-One component.

We will create a new Rating component based on the Dash Mantine Component Rating. This produces a form component that shows a set of 5 stars for the dashboard user to give a rating. We also include html.Legend in our custom component to label the form component.

Create the new component by subclassing VizroBaseModel:

import vizro.models as vm

class Rating(vm.VizroBaseModel):

Build the component in the build method:
- This can return any Dash component but is often a "container" component such as html.Div that includes multiple Dash components.
- Typically you use id=self.id for the "core" component, in this case dmc.Rating.
- Typically you prefix with self.id the id for a component that is not the core one.
```
from dash import html
import dash_mantine_components as dmc

class Rating(vm.VizroBaseModel):
    ...
    def build(self):
        return html.Div( # (1)!
            [
                html.Legend(id=f"{self.id}_title", ...), # (2)!
                dmc.Rating(id=self.id, ...) # (3)!
            ]
        )
```
1. In this example, for simplicity we use html.Div to provide the outer container. You could also use html.Fieldset, which is specifically designed for grouping a form legend with a set of controls.
2. This is not the core component but we will later address it with an action, so it must have an id set. We prefix its id with self.id.
3. This is the core component, and so it has id=self.id.
Since the new model will be inserted into the components argument of the Page model, it will be part of the discriminated union ComponentType. Hence we must:
- define a new type:
```
class Rating(vm.VizroBaseModel):
    type: Literal["rating"] = "rating"
    ...
```
- register the type with the parent model:
```
vm.Page.add_type("components", Rating)
```

Here is the full code for Rating and a simple app containing it.

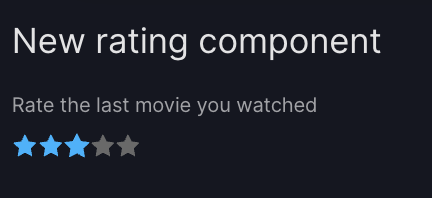

New component creation

app.pyyamlResult

from typing import Literal

from dash import html
import dash_mantine_components as dmc
import vizro.models as vm
from vizro import Vizro


class Rating(vm.VizroBaseModel):
    type: Literal["rating"] = "rating"
    title: str # (1)!
    color: str = "#00b4ff" # (2)!

    def build(self):
        return html.Div( # (3)!
            [
                html.Legend(id=f"{self.id}_title", children=self.title, className="form-label"),
                dmc.Rating(id=self.id, color=self.color),
            ]
        )


vm.Page.add_type("components", Rating)  # (4)!

page = vm.Page(
    title="New rating component",
    layout=vm.Flex(),
    components=[
        Rating(title="Rate the last movie you watched"),  # (5)!
    ],
)

dashboard = vm.Dashboard(pages=[page])
Vizro().build(dashboard).run()

Run and edit this code in Py.Cafe

You can optionally define other Pydantic fields to configure our custom component. Here we define a mandatory title field that must be a string.
This field color is optional and has a default value. Here we specify the field to be a string, but there also exists a special Color type in the pydantic-extra-types package that would perform stricter validation and additional functionality.
We use the values of the Pydantic fields id (inherited from vm.VizroBaseModel), title and color in the Dash components.
Don't forget! If part of a discriminated union, you must add the new component to the parent model where it will be inserted. In this case the new Rating will be inserted into the components argument of the Page model, and thus must be added as an allowed type.
The title field is mandatory; id and color are optional and not specified here.

# Custom components are currently only possible via Python configuration

Use custom components with actions

Custom components can be used with both built-in actions and custom actions. Here we demonstrate how the above Rating component can be used with actions.

Dash properties as input and output

To use your custom component as an input or output for an action, you must explicitly specify an id when using the component, for example Rating(id="my_rating").

It is then immediately possible to address the properties of Dash components built by the custom component. For example, we could use "my_rating.value" as the input or output of an action to target the value property of the dmc.Rating component. Here is an example button that triggers a custom action to set this Dash property by including outputs="my_rating.value".

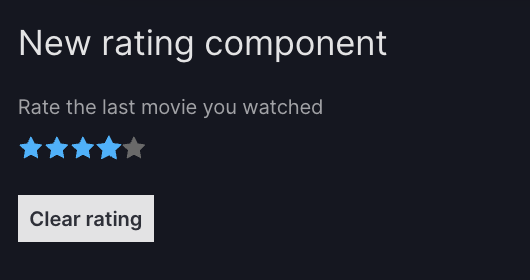

Use custom component Dash properties as an action output

app.pyyamlResult

from typing import Literal

from dash import html
import dash_mantine_components as dmc
import vizro.models as vm
from vizro.models.types import capture
from vizro import Vizro


class Rating(vm.VizroBaseModel):
    type: Literal["rating"] = "rating"
    title: str
    color: str = "#00b4ff"

    def build(self):
        return html.Div(
            [
                html.Legend(id=f"{self.id}_title", children=self.title, className="form-label"),
                dmc.Rating(id=self.id, color=self.color),
            ]
        )


vm.Page.add_type("components", Rating)


@capture("action") # (1)!
def clear_rating():
    return 0


page = vm.Page(
    title="New rating component",
    layout=vm.Flex(),
    components=[
        Rating(id="my_rating", title="Rate the last movie you watched"), # (2)!
        vm.Button(
            text="Clear rating",
            actions=vm.Action(function=clear_rating(), outputs="my_rating.value"), # (3)!
        ),
    ],
)

dashboard = vm.Dashboard(pages=[page])
Vizro().build(dashboard).run()

Run and edit this code in Py.Cafe

We write a custom action clear_rating that has no inputs and returns 0.
To use our Rating component in a custom action, we must explicitly specify an id.
We attach the clear_rating action to the button so that it is triggered when the button is clicked. The output of clear_rating sets the value of "my_rating.value", which corresponds to the value property of the dmc.Rating component produced by our custom Rating component.

# Custom components are currently only possible via Python configuration

Model ID as input and output

Note

You do not need to follow these steps if any of these conditions holds:

Your custom component is an extension of an existing component, in which case your model inherits the _action_inputs and _action_outputs properties automatically.
You are happy to use Dash properties as input and output.

Generally when we use actions and built-in Vizro components, we refer only to the id (in this example "my_rating") rather than a Dash component property such as "my_rating.value". To enable this, we must define some extra information in the custom component using _action_inputs and _action_outputs. Here we define a mapping that tells actions to map "my_rating" onto "my_rating.value".

class Rating(vm.VizroBaseModel):
    ...

    @property
    def _action_inputs(self):
        return {"__default__": f"{self.id}.value"}  # (1)!

    @property
    def _action_outputs(self):
        return {"__default__": f"{self.id}.value"}

The "__default__" key corresponds to the Dash component property used when an action input or output specifies only the id of "my_rating". Typically this maps onto the most commonly used property of the core component produced by your custom component, which has id=self.id.

This enables you to replace in your dashboard configuration all action input and output references to "my_rating.value" with just "my_rating". The full code is given below.

Use custom component model ID as an action output

app.pyyamlResult

from typing import Literal

from dash import html
import dash_mantine_components as dmc
import vizro.models as vm
from vizro.models.types import capture
from vizro import Vizro


class Rating(vm.VizroBaseModel):
    type: Literal["rating"] = "rating"
    title: str
    color: str = "#00b4ff"

    @property
    def _action_inputs(self):
        return {"__default__": f"{self.id}.value"}

    @property
    def _action_outputs(self):
        return {"__default__": f"{self.id}.value"}

    def build(self):
        return html.Div(
            [
                html.Legend(id=f"{self.id}_title", children=self.title, className="form-label"),
                dmc.Rating(id=self.id, color=self.color),
            ]
        )


vm.Page.add_type("components", Rating)


@capture("action")
def clear_rating():
    return 0


page = vm.Page(
    title="New rating component",
    layout=vm.Flex(),
    components=[
        Rating(id="my_rating", title="Rate the last movie you watched"),
        vm.Button(
            text="Clear rating",
            actions=vm.Action(function=clear_rating(), outputs="my_rating"),  # (1)!
        ),
    ],
)

dashboard = vm.Dashboard(pages=[page])
Vizro().build(dashboard).run()

Run and edit this code in Py.Cafe

We replace outputs="my_rating.value" with outputs="my_rating". This will look up the "__default__" key in the _action_outputs mapping defined for the the model with id="my_rating".

# Custom components are currently only possible via Python configuration

Model fields as input and output

Note

You do not need to follow these steps if any of these conditions holds:

You do not wish to address anything other than your custom component's core component.
You are happy to use Dash properties as input and output.

To map your model's fields onto Dash component properties you can define further entries in _action_inputs and _action_outputs. For example, let's say we wanted to add a radio items model so the user can select which movie to rate. When the movie is selected, it will trigger an action that updates the title of our custom Rating component. This corresponds to the following Dash component produced in the Rating model's build method:

html.Legend(id=f"{self.id}_title", children=self.title, className="form-label")

We can already address this Dash property by using "my_rating_title.children" as an action input or output. To enable us to instead address the field with "my_rating.title", we must add an additional mapping to _action_inputs and/or _action_outputs:

@property
def _action_outputs(self):
    return {"__default__": f"{self.id}.value", "title": f"{self.id}_title.children"}

This enables you to replace in your dashboard configuration all references to output="my_rating_title.children" with output="my_rating.title". The full code is given below.

Use custom component model field as an action output

app.pyyamlResult

from typing import Literal

from dash import html
import dash_mantine_components as dmc
import vizro.models as vm
from vizro.models.types import capture
from vizro import Vizro


class Rating(vm.VizroBaseModel):
    type: Literal["rating"] = "rating"
    title: str
    color: str = "#00b4ff"

    @property
    def _action_inputs(self):
        return {"__default__": f"{self.id}.value"}

    @property
    def _action_outputs(self):
        return {"__default__": f"{self.id}.value", "title": f"{self.id}_title.children"}

    def build(self):
        return html.Div(
            [
                html.Legend(id=f"{self.id}_title", children=self.title, className="form-label"),
                dmc.Rating(id=self.id, color=self.color),
            ]
        )


vm.Page.add_type("components", Rating)
vm.Page.add_type("components", vm.RadioItems) # (1)!


@capture("action")
def clear_rating():
    return 0


@capture("action") # (2)!
def set_movie_title(title):
    return f"Rate the movie {title}"

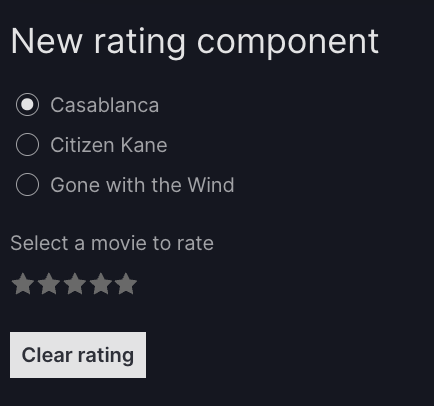

page = vm.Page(
    title="New rating component",
    layout=vm.Flex(),
    components=[
        vm.RadioItems( # (3)!
            id="movie_title",
            options=["Casablanca", "Citizen Kane", "Gone with the Wind"],
            actions=vm.Action(
                function=set_movie_title(title="movie_title"), # (4)!
                outputs="my_rating.title" # (5)!
            ),
        ),
        Rating(id="my_rating", title="Select a movie to rate"),
        vm.Button(
            text="Clear rating",
            actions=vm.Action(function=clear_rating(), outputs="my_rating"),
        ),
    ],
)

dashboard = vm.Dashboard(pages=[page])
Vizro().build(dashboard).run()

Run and edit this code in Py.Cafe

Currently RadioItems is designed to be used as a control selector. In future, Vizro will have a dedicated Form model for the creation of forms. For now, we add form components directly as components inside the Page. For this to be a valid configuration we must first do add_type as for a custom component.
We write a custom action set_movie_title that takes in the title specified and returns a string "Rate the movie ...".
We attach the set_movie_title action to the radio items, so that it is triggered when an option is selected.
The input "movie_title" corresponds to the value selected in the radio items and sets the title argument of the set_movie_title action.
The output of set_movie_title sets the value of "my_rating.title", which maps onto the contents of the legend in the Rating(id="my_rating") component.

# Custom components are currently only possible via Python configuration

Trigger actions

Note

You do not need to follow these steps if your custom component is an extension of an existing component, in which case your model inherits the _action_triggers property automatically.

To enable your custom component to trigger one or multiple actions:

Add a field actions of type ActionsType.
Set the action trigger using make_actions_chain and _action_triggers.
When the custom component is used, attach one or more built-in actions or custom actions to it by setting the actions field.

For example, let's make our Rating component trigger an action when the user clicks on the stars. Clicking the stars updates the value property, and so this must be linked to the "__default__" key in the _action_triggers mapping as follows:

from pydantic import model_validator
from vizro.models._models_utils import make_actions_chain
from vizro.models.types import ActionsType


class Rating(vm.VizroBaseModel):
    ...
    actions: ActionsType

    _make_actions_chain = model_validator(mode="after")(make_actions_chain)

    @property
    def _action_triggers(self):
        return {"__default__": f"{self.id}.value"}

In our dashboard configuration we would then attach the actions to trigger when we configure the Rating component:

Rating(..., actions=...)

A full example is given below.

Trigger actions with a custom component

app.pyyamlResult

from typing import Literal

from dash import html
import dash_mantine_components as dmc
from pydantic import model_validator
import vizro.models as vm
from vizro.models._models_utils import make_actions_chain
from vizro.models.types import capture, ActionsType
from vizro import Vizro


class Rating(vm.VizroBaseModel):
    type: Literal["rating"] = "rating"
    title: str
    color: str = "#00b4ff"
    actions: ActionsType

    _make_actions_chain = model_validator(mode="after")(make_actions_chain)

    @property
    def _action_triggers(self):
        return {"__default__": f"{self.id}.value"}

    @property
    def _action_inputs(self):
        return {"__default__": f"{self.id}.value"}

    @property
    def _action_outputs(self):
        return {"__default__": f"{self.id}.value", "title": f"{self.id}_title.children"}

    def build(self):
        return html.Div(
            [
                html.Legend(id=f"{self.id}_title", children=self.title, className="form-label"),
                dmc.Rating(id=self.id, color=self.color),
            ]
        )


vm.Page.add_type("components", Rating)
vm.Page.add_type("components", vm.RadioItems)


@capture("action")
def clear_rating():
    return 0


@capture("action")
def set_movie_title(title):
    return f"Rate the movie {title}"


@capture("action")
def update_rating_text(rating_value): # (1)!
    if rating_value:
        return f"You gave a rating of {rating_value} out of 5 stars"
    return "You have not provided a rating"


page = vm.Page(
    title="New rating component",
    layout=vm.Flex(),
    components=[
        vm.RadioItems(
            id="movie_title",
            options=["Casablanca", "Citizen Kane", "Gone with the Wind"],
            actions=vm.Action(
                function=set_movie_title("movie_title"),
                outputs="my_rating.title"
            ),
        ),
        Rating(
            id="my_rating",
            title="Select a movie to rate",
            actions=vm.Action(
                function=update_rating_text("my_rating"), # (2)!
                outputs="rating_text" # (3)!
            ),
        ),
        vm.Text(id="rating_text", text="You have not provided a rating"),
        vm.Button(
            text="Clear rating",
            actions=vm.Action(function=clear_rating(), outputs="my_rating"),
        ),
    ],
)

dashboard = vm.Dashboard(pages=[page])
Vizro().build(dashboard).run()

Run and edit this code in Py.Cafe

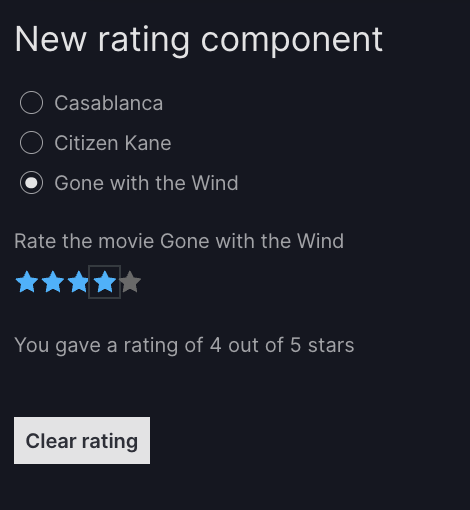

We write a custom action update_rating_text that takes in the rating_value (an integer between 1 and 5) and returns a string "You gave a rating of ...".
We attach the update_rating_text action to our custom Rating component, so that it is triggered when the rating stars are clicked. The input "my_rating" (which also maps onto "my_rating.value") sets the rating_value argument of the update_rating_text action.
The output of update_rating_text sets the value of "rating_text", which maps onto the contents of the vm.Text(id="rating_text") component.

# Custom components are currently only possible via Python configuration

Persistence

By default, all Dash components in Vizro that persist clientside data set persistence_type="session" to use window.SessionStorage, which is cleared upon closing the browser.

Be careful when using any custom components that persist data beyond this scope: it is your responsibility to ensure compliance with any legal requirements affecting jurisdictions in which your app operates.
