How to create custom figures

This guide explains how to create custom figures, which is useful when you need a component that reacts to filter and parameter controls.

The Figure model accepts the figure argument, where you can enter any custom figure function as explained in the user guide on figures.

When to use a custom figure

As described in the flowchart detailing when to use Figure, custom figures should be used if both of the following conditions are met:

• You need a figure that doesn't fit into the existing built-in models (Graph, Table or AgGrid).
• You need a figure that isn't available in our built-in figure functions vizro.figures.

Steps to create a custom figure

1. Define a function that returns a Dash component. This can, but does not need to, be based on code in our built-in figure functions in vizro.figures.
2. Decorate it with @capture("figure").
3. The function must accept a data_frame argument (of type pandas.DataFrame).
4. The figure should be derived from and require only one pandas.DataFrame. Dataframes from other arguments will not react to dashboard controls such as Filter.
5. Pass your function to the figure argument of the Figure model.

The following examples can be used as a base to build more sophisticated figures.

Examples of custom figures

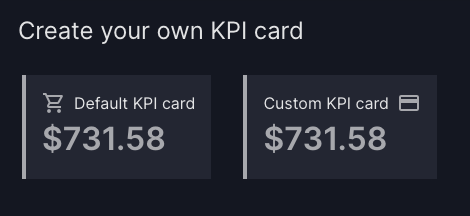

Custom KPI card

To change the design or content of our existing KPI (key performance indicator) cards from vizro.figures, you can do so by following the steps described above.

For instance, to make a KPI card with the icon positioned on the right side of the title instead of the left, copy and paste the source code of kpi_card and adjust the return statement of the function.

Custom KPI card

app.pyapp.yamlResult

import dash_bootstrap_components as dbc
import pandas as pd
import vizro.models as vm
import vizro.plotly.express as px
from dash import html
from vizro import Vizro
from vizro.figures import kpi_card
from vizro.models.types import capture

tips = px.data.tips()


@capture("figure")  # (1)!
def custom_kpi_card(
    data_frame: pd.DataFrame,
    value_column: str,
    *,
    value_format: str = "{value}",
    agg_func: str = "sum",
    title: str | None,
    icon: str | None,
) -> dbc.Card:  # (2)!
    title = title or f"{agg_func} {value_column}".title()
    value = data_frame[value_column].agg(agg_func)
    header = dbc.CardHeader(
            [
                html.H4(title, className="card-kpi-title"),
                html.P(icon, className="material-symbols-outlined") if icon else None,  # (3)!
            ]
        )
    body = dbc.CardBody([value_format.format(value=value)])
    return dbc.Card([header, body], class_name="card-kpi")


page = vm.Page(
    title="Create your own KPI card",
    layout=vm.Flex(direction="row"),  # (4)!
    components=[
        vm.Figure(
            figure=kpi_card(  # (5)!
                data_frame=tips,
                value_column="tip",
                value_format="${value:.2f}",
                icon="Shopping Cart",
                title="Default KPI card",
            )
        ),
        vm.Figure(
            figure=custom_kpi_card(  # (6)!
                data_frame=tips,
                value_column="tip",
                value_format="${value:.2f}",
                icon="Payment",
                title="Custom KPI card",
            )
        ),
    ],
)

dashboard = vm.Dashboard(pages=[page])
Vizro().build(dashboard).run()

Run and edit this code in Py.Cafe

1. Here we decorate our custom figure function with the @capture("figure") decorator.
2. The custom figure function needs to have a data_frame argument and return a Dash component.
3. We adjust the return statement to include the icon on the right side of the title. This is achieved by swapping the order of the html.H2 and html.P compared to the original kpi_card.
4. We use a Flex layout with direction="row" to ensure the KPI cards are placed side by side and only take up as much space as needed.
5. For more information, refer to the API reference for the kpi_card.
6. Our custom figure function custom_kpi_card now needs to be passed on to the vm.Figure.

# Still requires a .py to add data to the data manager, define CapturedCallables, and parse YAML configuration
# More explanation in the docs on `Dashboard` and extensions.
pages:
  - components:
      - figure:
          _target_: kpi_card
          data_frame: tips
          value_column: tip
          value_format: ${value:.2f}
          icon: Shopping Cart
          title: Default KPI card
        type: figure
      - figure:
          _target_: __main__.custom_kpi_card
          data_frame: tips
          value_column: tip
          value_format: ${value:.2f}
          icon: Payment
          title: Custom KPI card
        type: figure
    layout:
      direction: row
      type: flex
    title: Create your own KPI card

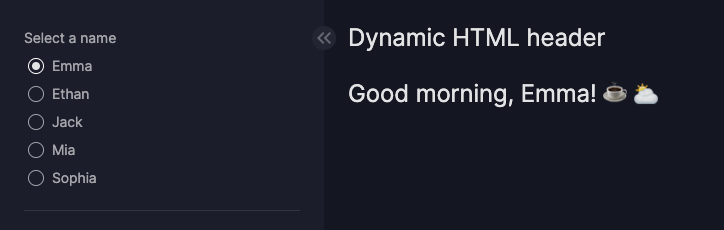

Dynamic HTML header

You can create a custom figure for any Dash component. Below is an example of a custom figure that returns a html.H2 component that dynamically updates based on the selected name from a filter.

Dynamic HTML header

app.pyapp.yamlResult

import pandas as pd
import vizro.models as vm
from dash import html
from vizro import Vizro
from vizro.models.types import capture

df = pd.DataFrame({"names": ["Emma", "Jack", "Sophia", "Ethan", "Mia"]})


@capture("figure")  # (1)!
def dynamic_html_header(data_frame: pd.DataFrame, column: str) -> html.H2:  # (2)!
    """Creates a HTML header that dynamically updates based on controls."""
    return html.H2(f"Good morning, {data_frame[column].iloc[0]}! ☕ ⛅")  # (3)!


page = vm.Page(
    title="Dynamic HTML header",
    components=[vm.Figure(figure=dynamic_html_header(data_frame=df, column="names"))],  # (4)!
    controls=[vm.Filter(column="names", selector=vm.RadioItems(title="Select a name"))],
)

dashboard = vm.Dashboard(pages=[page])
Vizro().build(dashboard).run()

Run and edit this code in Py.Cafe

1. Here we decorate our custom figure function with the @capture("figure") decorator.
2. The custom figure function needs to have a data_frame argument and return a Dash component.
3. We return a html.H2 component that dynamically updates based on the selected name from the filter.
4. Our custom figure function dynamic_html_header now needs to be passed on to the vm.Figure.

# Still requires a .py to add data to the data manager, define CapturedCallables, and parse YAML configuration
# More explanation in the docs on `Dashboard` and extensions.
pages:
  - components:
      - figure:
          _target_: __main__.dynamic_html_header
          data_frame: df
          column: names
        type: figure
    controls:
      - column: names
        type: filter
        selector:
          type: radio_items
    title: Dynamic HTML header

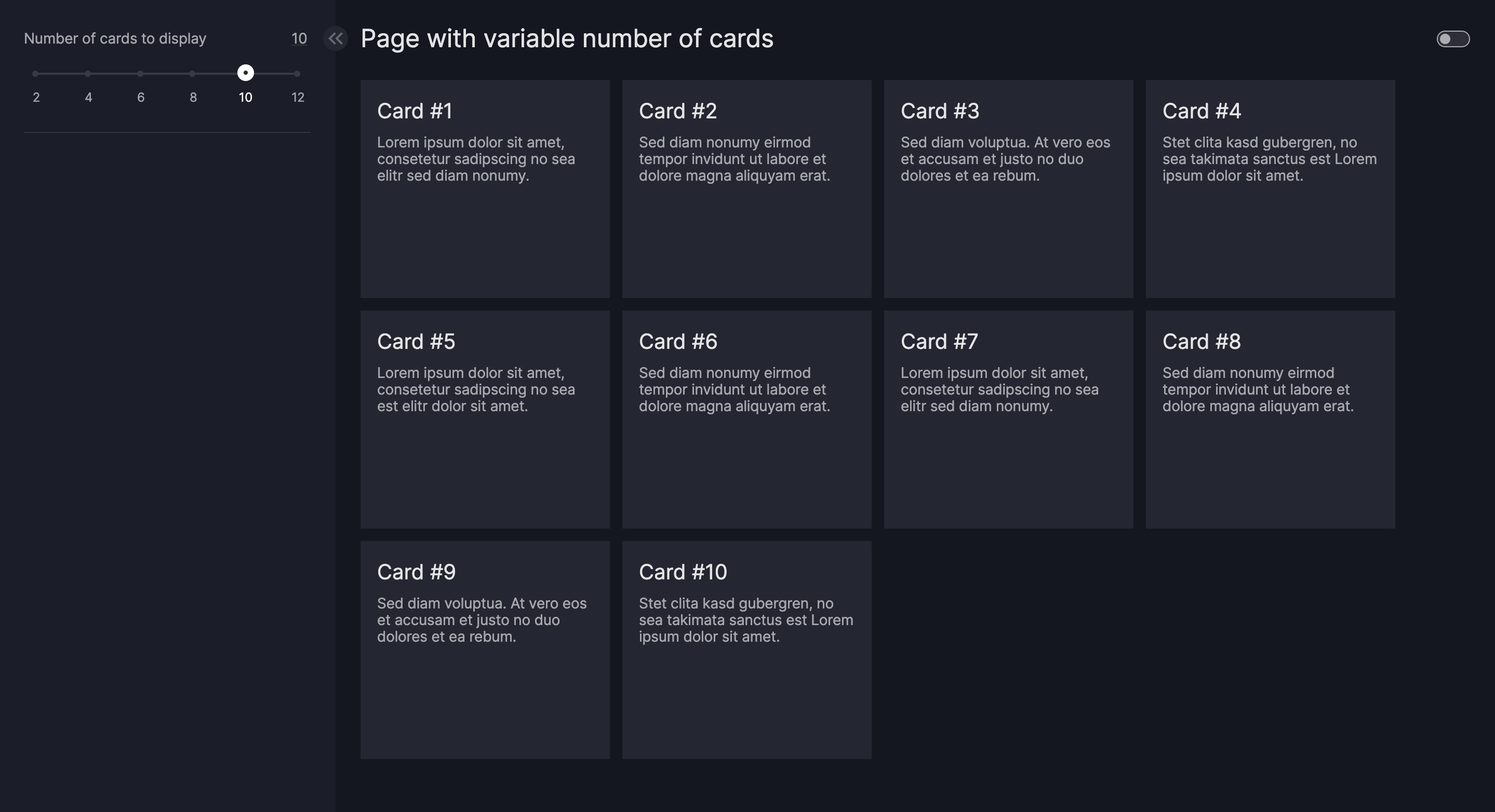

Dynamic number of cards

The example below shows how to create multiple cards created from a pandas.DataFrame where the number of cards displayed dynamically adjusts based on a vm.Parameter.

Dynamic number of cards

app.pystyling.cssapp.yamlResult

import dash_bootstrap_components as dbc
import pandas as pd
import vizro.models as vm
from dash import dcc, html
from vizro import Vizro
from vizro.models.types import capture

text = [
    "Lorem ipsum dolor sit amet, consetetur sadipscing no sea elitr sed diam nonumy.",
    "Sed diam nonumy eirmod tempor invidunt ut labore et dolore magna aliquyam erat.",
    "Sed diam voluptua. At vero eos et accusam et justo no duo dolores et ea rebum.",
    "Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit amet.",
    "Lorem ipsum dolor sit amet, consetetur sadipscing no sea est elitr dolor sit amet.",
    "Sed diam nonumy eirmod tempor invidunt ut labore et dolore magna aliquyam erat.",
]

df = pd.DataFrame({"text": text * 2})


@capture("figure")  # (1)!
def multiple_cards(data_frame: pd.DataFrame, n_rows: int = 1) -> html.Div:  # (2)!
    """Creates a list with a variable number of `vm.Card` components from the provided data_frame.

    Args:
        data_frame: Data frame containing the data.
        n_rows: Number of rows to use from the data_frame. Defaults to 1.

    Returns:
        html.Div with a list of dbc.Card objects generated from the data.

    """
    texts = data_frame.head(n_rows)["text"]
    return html.Div(
        [dbc.Card(dcc.Markdown(f"### Card #{i}\n{text}")) for i, text in enumerate(texts, 1)],
        className="multiple-cards-container",
    )


page = vm.Page(
    title="Page with variable number of cards",
    components=[vm.Figure(id="my-figure", figure=multiple_cards(data_frame=df))],  # (3)!
    controls=[
        vm.Parameter(
            targets=["my-figure.n_rows"],  # (4)!
            selector=vm.Slider(min=2, max=12, step=2, value=10, title="Number of cards to display"),
        ),
    ],
    layout=vm.Flex()
)

dashboard = vm.Dashboard(pages=[page])
Vizro().build(dashboard).run()

1. Here we decorate our custom figure function with the @capture("figure") decorator.
2. The custom figure function needs to have a data_frame argument and return a Dash component.
3. Our decorated figure function multiple_cards now needs to be passed on to the vm.Figure.
4. We add a vm.Parameter to dynamically adjust the number of cards displayed. The parameter targets the n_rows argument of the multiple_cards function, determining the number of rows taken from the data.

Run and edit this code in PyCafe

.multiple-cards-container {
    display: flex;
    flex-wrap: wrap;
    gap: 12px;
}

.figure-container {
    height: unset;
    width: unset;
}

.figure-container .card {
    height: 210px;
    width: 240px;
}

# Still requires a .py to add data to the data manager, define CapturedCallables, and parse YAML configuration
# More explanation in the docs on `Dashboard` and extensions.
pages:
  - components:
      - figure:
          _target_: __main__.multiple_cards
          data_frame: df
        id: my-figure
        type: figure
    controls:
      - targets: [my-figure.n_rows]
        type: parameter
        selector:
          type: slider
          min: 2
          max: 12
          step: 2
          value: 10
          title: Number of cards to display
    layout:
      type: flex
    title: Dynamic HTML header
