How to use filters

This guide shows you how to add filters to your dashboard. A filter selects a subset of rows of a component's data to alter the appearance of that component. The following components are reactive to filters:

• built-in graphs and custom graphs
• built-in tables and custom tables
• built-in figures and custom figures

It is possible to add filters to a page or container. Both the Page model and the Container model have an optional controls argument where you can give any number of controls, including filters. A filter uses the Filter model to filter the data_frame of the figure function of a target component model such as Graph.

When the dashboard is running there are two ways for a user to set a filter:

• Direct user interaction with the underlying selector. For example, the user selects values from a checklist.
• User interaction with a graph or table via the set_control action. This enables functionality such as cross-filtering. To achieve a visually cleaner dashboard you might like to hide the filter's underlying selector with visible=False.

By default, filters that control components with dynamic data are dynamically updated when the underlying data changes while the dashboard is running.

Basic filters

To add a filter to your page, do the following:

1. add the Filter model into the controls argument of the Page model
2. configure the column argument, which denotes the target column to be filtered

You can also set targets to specify which components on the page the filter should apply to. If this is not explicitly set then targets defaults to all components on the page whose data source includes column.

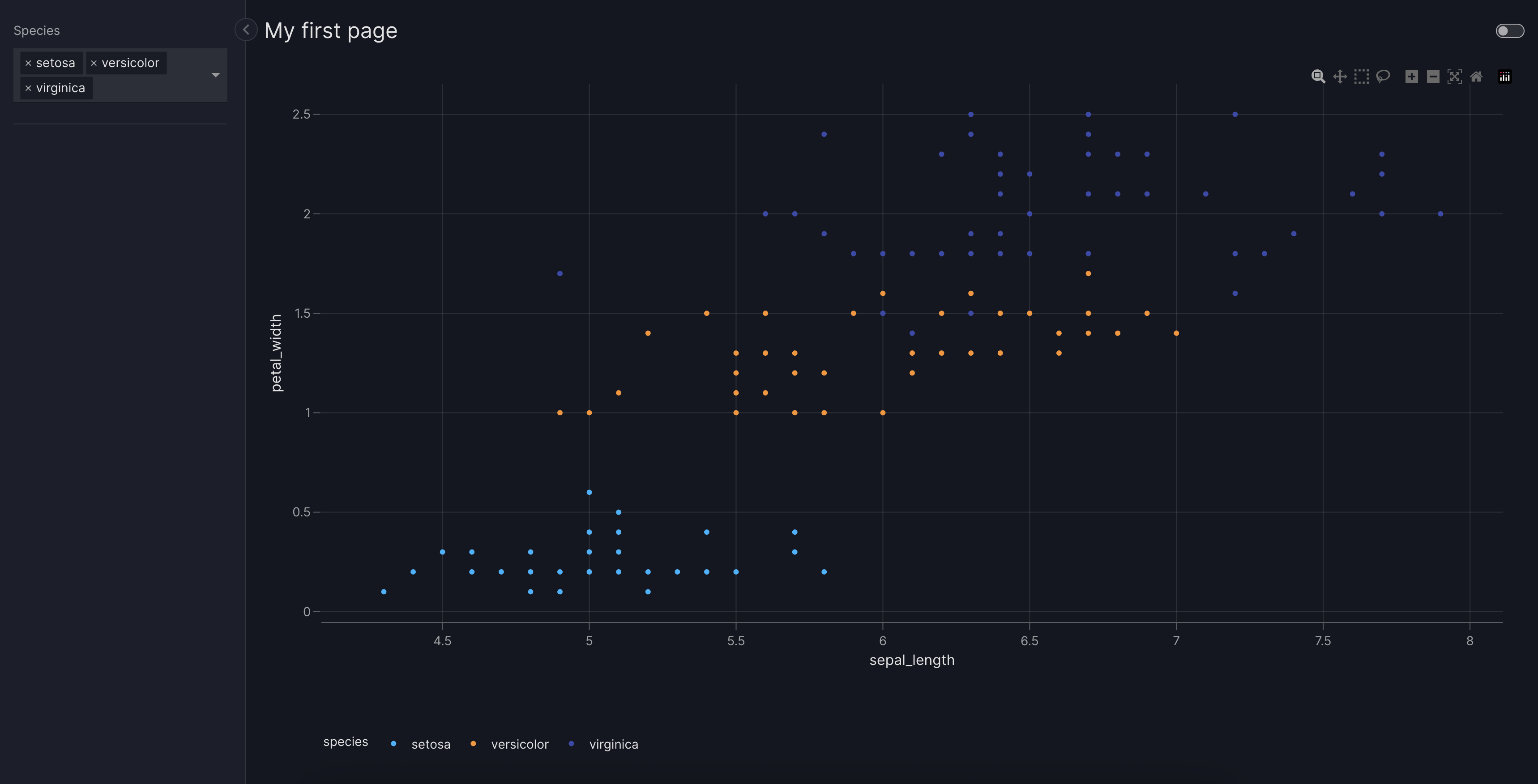

Basic Filter

app.pyapp.yamlResult

from vizro import Vizro
import vizro.plotly.express as px
import vizro.models as vm

iris = px.data.iris()

page = vm.Page(
    title="My first page",
    components=[
        vm.Graph(figure=px.scatter(iris, x="sepal_length", y="petal_width", color="species")),
    ],
    controls=[
        vm.Filter(column="species"),
    ],
)

dashboard = vm.Dashboard(pages=[page])
Vizro().build(dashboard).run()

Run and edit this code in Py.Cafe

# Still requires a .py to add data to the data manager and parse YAML configuration
# See yaml_version example
pages:
  - components:
      - figure:
          _target_: scatter
          data_frame: iris
          x: sepal_length
          y: petal_width
          color: species
        type: graph
    controls:
      - column: species
        type: filter
    title: My first page

The selector is configured automatically based on the target column type data as follows:

• Categorical data uses vm.Dropdown(multi=True) where options is the set of unique values found in column across all the data sources of components in targets.
• Numerical data uses vm.RangeSlider where min and max are the overall minimum and maximum values found in column across all the data sources of components in targets.
• Temporal data uses vm.DatePicker(range=True) where min and max are the overall minimum and maximum values found in column across all the data sources of components in targets. A column can be converted to this type with pandas.to_datetime.
• Boolean data uses vm.Switch which provides a toggle interface for True/False values. The Switch also works with binary numerical columns containing 0/1 values.

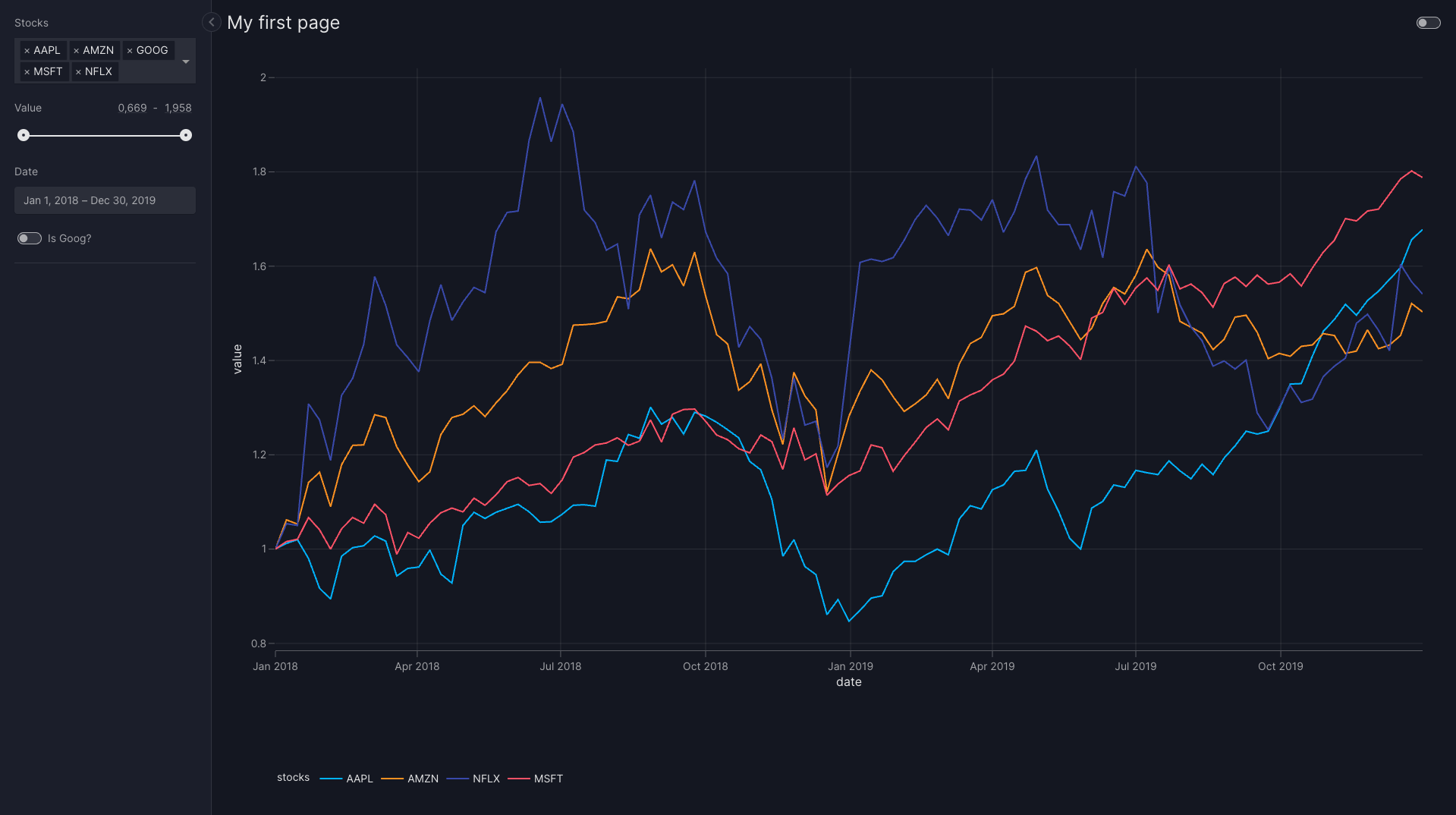

The following example demonstrates these default selector types.

Default Filter selectors

app.pyapp.yamlResult

import pandas as pd
from vizro import Vizro
import vizro.plotly.express as px
import vizro.models as vm

df_stocks = px.data.stocks(datetimes=True)

df_stocks_long = pd.melt(
    df_stocks,
    id_vars='date',
    value_vars=['GOOG', 'AAPL', 'AMZN', 'FB', 'NFLX', 'MSFT'],
    var_name='stocks',
    value_name='value'
)

df_stocks_long['value'] = df_stocks_long['value'].round(3)
df_stocks_long['Is GOOG?'] = df_stocks_long["stocks"] == "GOOG"

page = vm.Page(
    title="My first page",
    components=[
        vm.Graph(figure=px.line(df_stocks_long, x="date", y="value", color="stocks")),
    ],
    controls=[
        vm.Filter(column="stocks"),
        vm.Filter(column="value"),
        vm.Filter(column="date"),
        vm.Filter(column="Is GOOG?"),
    ],
)

dashboard = vm.Dashboard(pages=[page])
Vizro().build(dashboard).run()

Run and edit this code in Py.Cafe

# Still requires a .py to add data to the data manager and parse YAML configuration
# See yaml_version example
pages:
  - components:
      - figure:
          _target_: line
          data_frame: df_stocks_long
          x: date
          y: value
          color: stocks
        type: graph
    controls:
      - column: stocks
        type: filter
      - column: value
        type: filter
      - column: date
        type: filter
      - column: Is GOOG?
        type: filter
    title: My first page

Change selector

If you want to have a different selector for your filter, you can give the selector argument of the Filter model a different selector model. Currently available selectors are Checklist, Dropdown, RadioItems, RangeSlider, Slider, DatePicker and Switch.

You can explore and test all available selectors interactively on our feature demo dashboard.

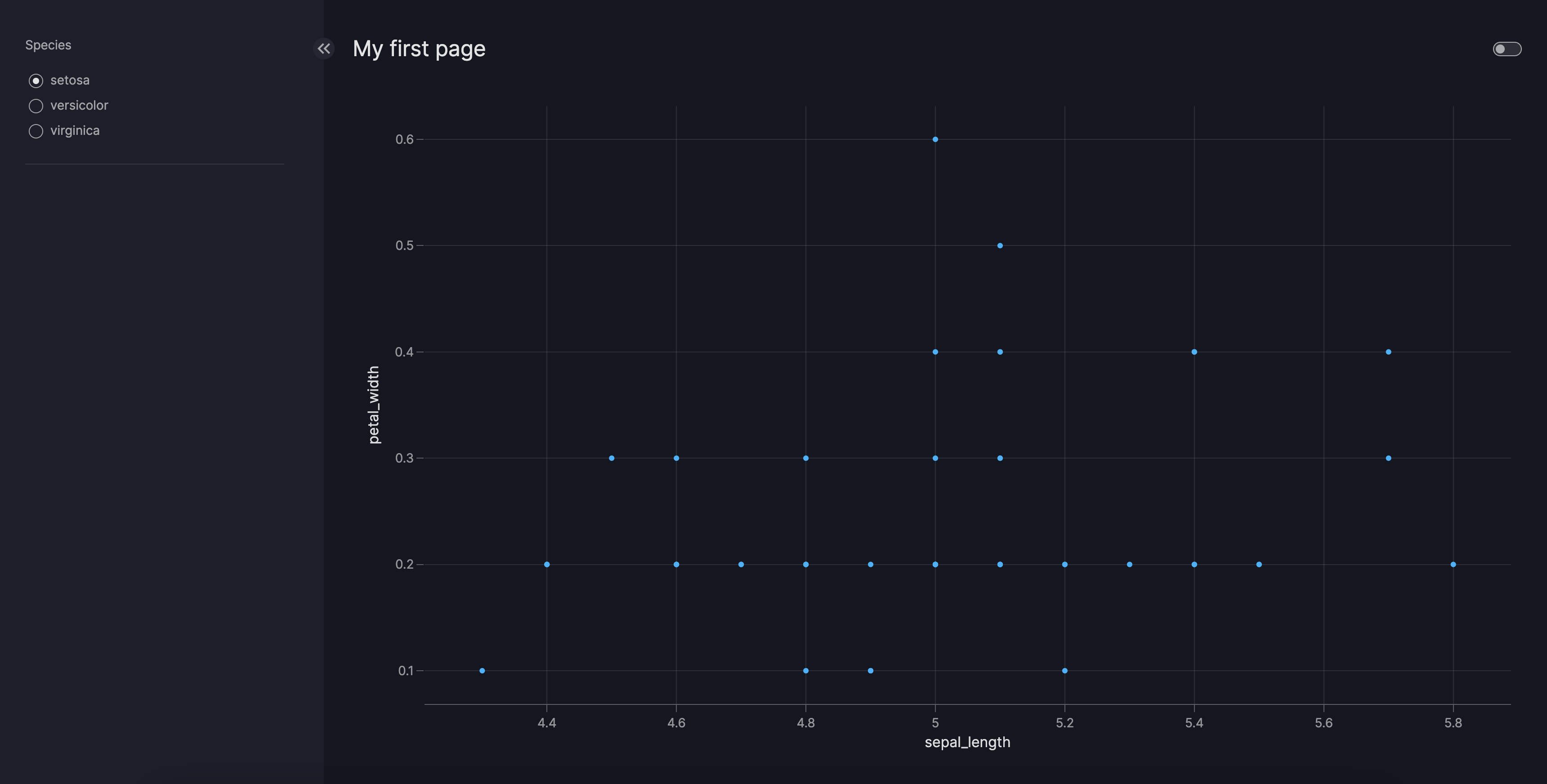

Filter with different selector

app.pyapp.yamlResult

from vizro import Vizro
import vizro.plotly.express as px
import vizro.models as vm

iris = px.data.iris()

page = vm.Page(
    title="My first page",
    components=[
        vm.Graph(figure=px.scatter(iris, x="sepal_length", y="petal_width")),
    ],
    controls=[
        vm.Filter(column="species", selector=vm.RadioItems()),
    ],
)

dashboard = vm.Dashboard(pages=[page])
Vizro().build(dashboard).run()

Run and edit this code in Py.Cafe

# Still requires a .py to add data to the data manager and parse YAML configuration
# See yaml_version example
pages:
  - components:
      - figure:
          _target_: scatter
          data_frame: iris
          x: sepal_length
          y: petal_width
        type: graph
    controls:
      - column: species
        selector:
          type: radio_items
        type: filter
    title: My first page

Further customization

For further customizations, refer to the guide to selectors and the Filter model. Some popular choices are:

• Select which components the filter applies to by using targets.
• Customize the selector, for example multi to switch between a multi-option and single-option selector, options for a categorical filter or min and max for a numerical filter.
• Make the filter's selector invisible by setting visible=False.

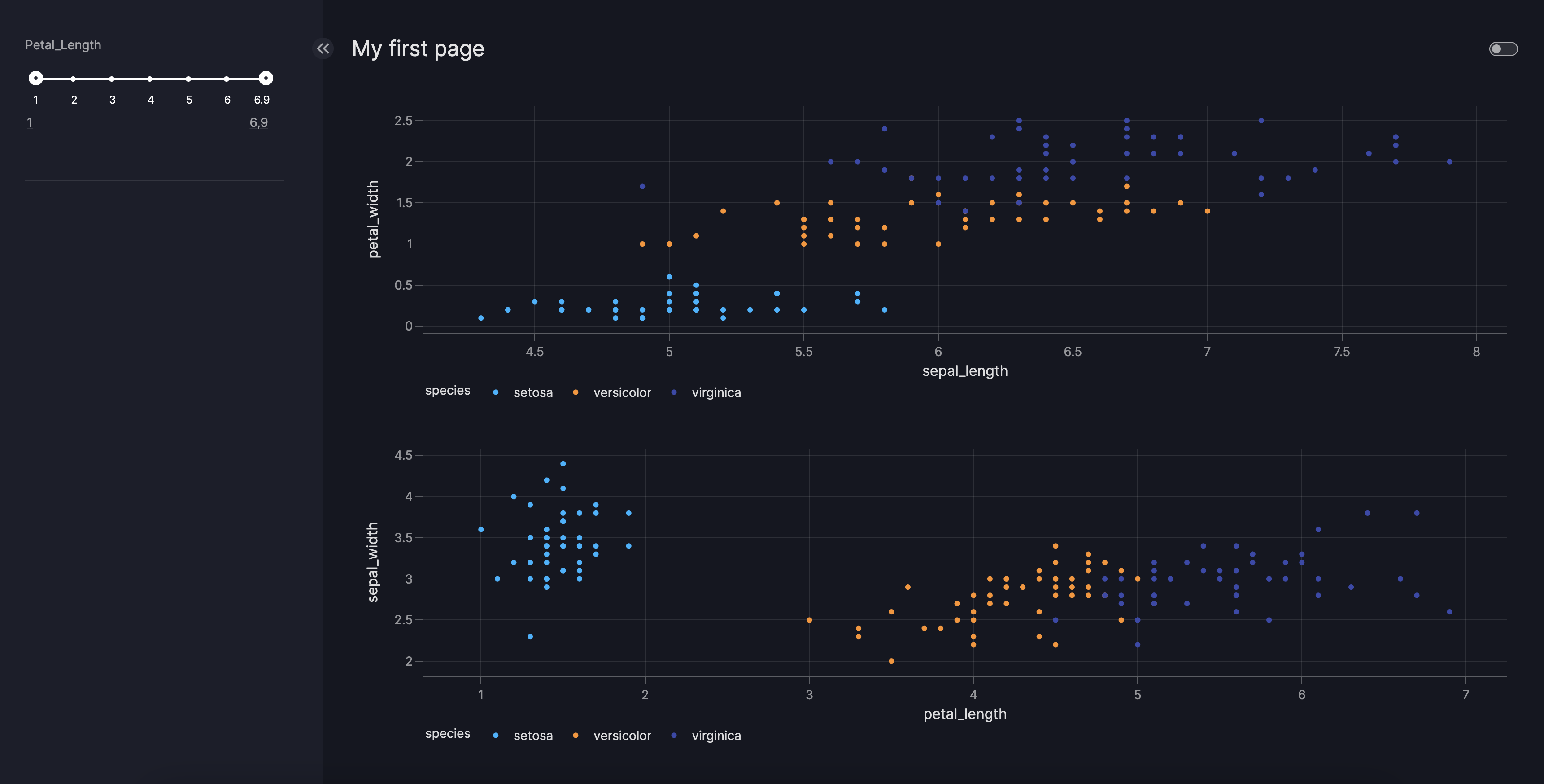

Below is an example where we only target one page component, and where we further customize the chosen selector.

Customized Filter

app.pyapp.yamlResult

from vizro import Vizro
import vizro.plotly.express as px
import vizro.models as vm

iris = px.data.iris()

page = vm.Page(
    title="My first page",
    components=[
        vm.Graph(id="scatter_chart", figure=px.scatter(iris, x="sepal_length", y="petal_width", color="species")),
        vm.Graph(figure=px.scatter(iris, x="petal_length", y="sepal_width", color="species")),
    ],
    controls=[
        vm.Filter(column="petal_length",targets=["scatter_chart"], selector=vm.RangeSlider(step=1)),
    ],
)

dashboard = vm.Dashboard(pages=[page])
Vizro().build(dashboard).run()

Run and edit this code in Py.Cafe

# Still requires a .py to add data to the data manager and parse YAML configuration
# See yaml_version example
pages:
  - components:
      - figure:
          _target_: scatter
          data_frame: iris
          x: sepal_length
          y: petal_width
          color: species
        id: scatter_chart
        type: graph
      - figure:
          _target_: scatter
          data_frame: iris
          x: petal_length
          y: sepal_width
          color: species
        type: graph
    controls:
      - column: petal_length
        targets:
          - scatter_chart
        selector:
          step: 1
          type: range_slider
        type: filter
    title: My first page
